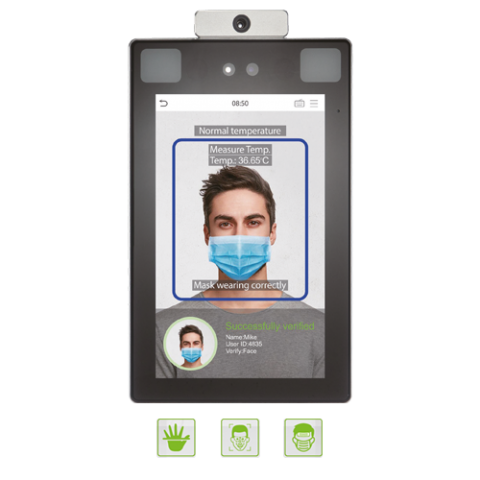

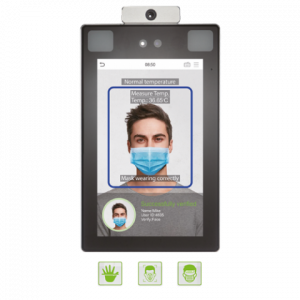

ZKTeco ProFace X[TD] Access Control Device


ZKTeco ProFace X[TD] Access Control Device

ProFace X [TD] is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm and the latest computer vision technology, ProFace X [TD] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

565,660.45

Compare

ZKTeco ProFace X[TD] Access Control Device

ZKTeco ProFace X[TD] Access Control Device is a high-speed biometric access control terminal with face, palm vein and mask recognition and body temperature measurement within the ProFace X Series product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm and the latest computer vision technology, the ProFace X [TD] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

ZKTeco ProFace X[TD] Access Control Device also helps eliminate hygiene concerns; not only because of the contactless recognition technology it is equipped with, but also because of the new functions namely body temperature measurement and masked individual identification.

The facial recognition capability of the series has reached a new height in the biometrics technology industry with a maximum of 50,000 facial templates, recognition speed of less than 0.3 sec per face, and ultimate anti-spoofing ability against almost all types of fake photos and videos attack.

In addition, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 5,000 palm templates.

ZKTeco ProFace X[TD] Access Control Device Series

As mentioned above, the ProFace X Series can assist in communicable disease surveillance as well. During outbreaks of infectious and contagious diseases, recognition terminals with body temperature measurement and mask detection should be a perfect choice. The series enables fast and accurate body temperature measurement and masked individual identification during facial and palm verification at all access points, which is extremely helpful in fighting the spread of disease outbreaks especially in hospitals, factories, schools, commercial buildings, stations, and other public areas.

ProFace X is an award-wining biometric facial recognition terminalthat has been recognized as the Winner in the Govies Government Security Awards 2020, honouring outstanding government security products (Security Today and GovSec).

ProFace X [TD] also helps eliminate hygiene concerns; not only because of the contactless recognition technology it is equipped with, but also because of the new functions namely body temperature detection and masked individual identification.

The facial recognition capability has reached a new height in the biometrics technology industry with a maximum of 50,000 facial templates, recognition speed of less than 0.3 sec per face, and ultimate anti-spoofing ability against almost all types of fake photos and videos attack.

In addition, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 5,000 palm templates.

As mentioned above, ProFace X [TD] can assist in reducing the risk of infection and germs spreading during the recent global public health issue as well. The enables fast and accurate body temperature measurement and masked individual identification during facial and palm verification at all access points, especially in hospitals, factories, schools, commercial buildings, airports, stations, and other public areas.

ZKTeco ProFace X[TD] Access Control Device Parameter

Capacity
 Faces 30,000 (1:N)  / 50,000 (Optional)
Palm 5,000 (1:N)
Users 50,000
 Transactions 1,000,000 / 2,000,000 (Optional)
User Photos 10,000
Event Photos 10,000
ZKTeco ProFace X[TD] Access Control Device Compatibility Security Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code / ZKBioSecurity Software
 Hardware  900MHz Dual Core CustomizedComputer vision CPU
 512MB RAM / 8G Flash
 8″ Hight light (400lux) IPS Touch LCD
 2MP WDR Low Light Camera
Adjustable Light brightness LED
Hi-Fi Voice
High Sensitivity Microphone
Distance Detection Sensor
Reset Button and Tamper Switch
Access Control Interface Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions  0.3s Hight Speed Facial Verification
Liveness Detection
HTTPS Communication Encryption (Optional)
 Event Snapshot
ZKTeco ProFace X[TD] Access Control Device Standard Functions Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback,

Record Query, Tamper Switch Alarm,Custom Wallpaper & Screen Saver

Preventative Measures
Mask detection
Body temperature detection
Temperature Measurement Distance:
30cm~50cm (1ft~1.64ft)
Temperature Measurement Accuracy:
±0.3°C  (±32.54°F)
Temperature Measurement Range:
34°C~45°C (93.2°F~113°F)
Communication TCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional Info
Face Algorithm: ZKLiveFace5.8
Palm:
FAR ≤0.01%; FRR ≤1%
Working Temperature:
16°C ~ 32°C (60.8°F ~ 89.6°F)
Working Humidity: ≤93%
Storage Temperature:  -40°C ~ 65°C (-40°F ~ 149°F)
Storage Humidity: ≤93%
Net Weight:  853g
Dimensions (H*L*D):
227*143*26.1mm
Power
Operating Voltage: 12V DC
Current Draw: <2,000mA
