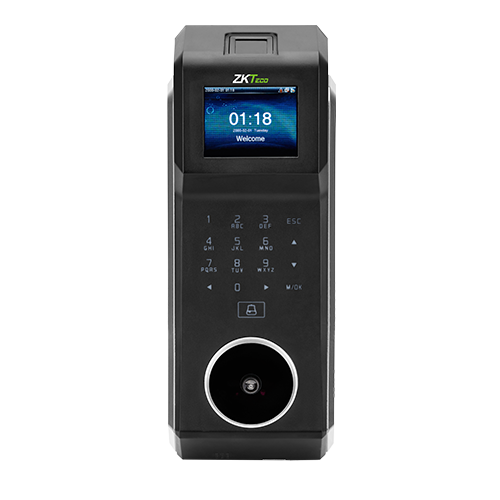

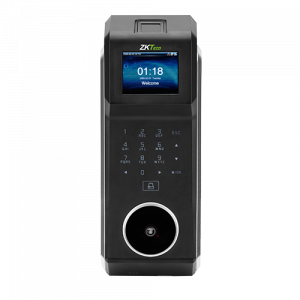

ZKTeco PA10 Palm/Fingerprint Device

ZKTeco PA10 Palm/Fingerprint Device

PA10 is a time attendance and access control terminal with Palm & Fingerprint Hybrid Biometrics. The Palm verification includes Palm Print & Palm Vein, so it not only is touchless, but also supports antispoof function. The BioID sensor possesses outstandingly high identification rate towards dry, wet and rough fingers. TCP/IP, RS485, PoE (optional) and Wi-fi (optional) are also available which enable PA10 to be applied in different networks and various situations.



ZKTeco PA10 Palm/Fingerprint Device

– 2.4 inch TFT LCD screen

– Various combination verification mode: Face, Fingerprint, Card, Password

– 800 Palm, 3000 FP, 3000 ID Cards, 150K Transactions Capacity

– Communication: RS485, TCP/IP and USB Host; Aux in for linkage function

– Wiegand Signal: Input & Output. Optional ADMS firmware

– BioID FP sensor provides high identification rate towards dry, wet & rough fingers

– 12VDC 3A Powered; Software bundled ZKTime.Net 3.0 / ZKBioTime 8.0 (require ADMS)

– 12 Months Warranty


Display 2.4-inch TFT LCD Color Screen
Palm Capacity 1,000
Fingerprint Capacity 3,000
Card Capacity( Optional ) 3000 ( ID/ IC Card /HID Proximity Felica card)
Transaction Capacity 150,000
Sensor BioID Sensor,SilkID(Optional)
Communication RS485, TCP/IP, USB-host, Wi-fi(Optional)
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal Input, Output, SRB
Aux. Input 1ea for linkage function
Functions DST, Automatic Status Switch, Anti-passback, Scheduled-Bell, Printer(Optional),
External FP Reader, ADMS (Optional), PoE(Optional)
Power Supply 12V DC, 3A
Operating Temperature 0 °C- 45 °C
Operating Humidity 20% – 80%
SDK and software Standalone SDK, ZKBio Access
