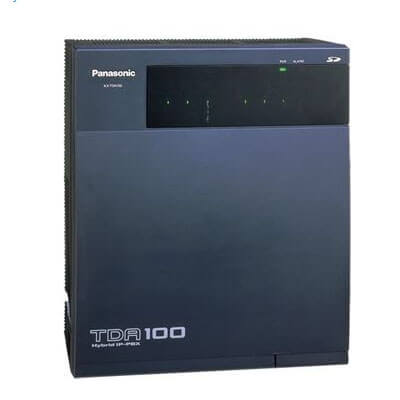

Panasonic Intercom PABX 64 Extension- KX-TDA 100 Hybrid IP-PBX

Hybrid IP PBX System
Maximum number of Simple Telephone extensions -64
Computer Telephony Integration (CTI) enables the telephone system and PC to act as one co-ordinated business tool.


  • Initial Setup: 8 analog CO lines with Caller ID, 4-port and 64-port Digital singles with Caller ID and lighter lamp posts.
  • Settings High: up to 112 analog CO lines (maximum 126 channels with 1 x PRI30 CO and 6 x LCOT16) and up to 176 extensions (104 DXDP extensions, 48 ??IP extensions and 24 simple extensions).
  • The main unit contains a power supply unit (PSU) and a card DMPR to initiate and control the plant.
    • Connection Ports:
    • CO line: Amphenol.
    • Extensions: RJ11 / Amphenol.
    • Paging: RJ45.
    • External Music: RJ45.
    • SMDR: RS-232C (9-pin D-SUB).
    • Programming: USB.
  • Power supply: 110-240VAC, 50/60Hz.
  • Dimensions: 334mm (W) x 390mm (H) x 270mm (D).
  • Approximate Weight: 12Kg.
