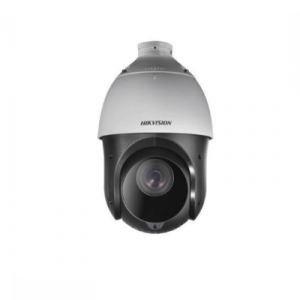

| Hikvision DS-2DE4425IW-DE 4MP 25X Network IR PTZ Camera | ||
|---|---|---|
| Image Sensor: | 1/2.5″ progressive scan CMOS | |
| Effective Pixels: | 2560(H)×1440(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
|
|
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 120dB | |
| Shutter Time: | 1/1 to 1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Hikvision DS-2DE4425IW-DE 4MP 25X Network IR PTZ Camera Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25× optical | |
| Zoom Speed: | Approx. 3.6 s (optical lens, wide-tele) | |
| Field of View: | Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele) |
|
| Minimum Working Distance: | 10 to 1500mm (wide-tele) | |
| Aperture Range: | F1.6 to F3.5 | |
| Hikvision DS-2DE4425IW-DE 4MP 25X Network IR PTZ Camera Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Configurable, from 0.1°/s to 80°/s, Preset speed: 80°/s |
|
| Proportional Zoom: | Yes | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets for each patrol | |
| Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
| Power-off Memory: | Support | |
| Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 100m | |
| Input & Output | ||
|---|---|---|
| Audio Input: | 1-ch audio input | |
| Audio Output: | 1-ch audio output | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 2560 × 1440 | |
| Main Stream: | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640×480,352×288) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| ROI encoding: | Main stream, sub-stream, and third stream respectively support four fixed areas. | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Client GUI | ||
|---|---|---|
| Client: | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect | |
| Hikvision DS-2DE4425IW-DE 4MP 25X Network IR PTZ Camera General | ||
|---|---|---|
| Language: | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) | |
| Power Supply: | 12VDC, PoE+ | |
| Power Consumption: | Max.: 18W (IR light 7W Max.) | |
| Working Temperature/Humidity: | Outdoor: -30°C to 65°C (-22°F to 149°F) Humidity:≤ 90% |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
| Material: | ADC 12, PC+10% GF | |
| Dimensions: | Φ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″) | |
| Weight (approx.): | Approx. 2.45kg (5.40lb) | |
