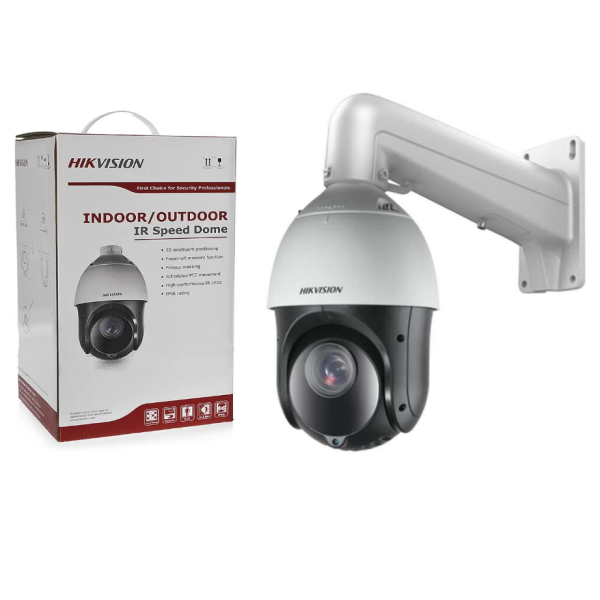

Hikvision DS-2DE4225IW-DE 2MP PTZ Camera

Hikvision DS-2DE4225IW-DE 2MP PTZ Camera

  •    1/2.8″ progressive scan CMOS
  •     Up to 1920 Ã 1080@30fps resolution
  •    Min. illumination:
  •     25Ã optical zoom, 16Ã digital zoom
  • o   WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
  •     Up to 100 m IR distance
  •    12 VDC & PoE+ (802.3 at, class4)
  •    Support H.265+/H.265 video compression



Hikvision DS-2DE4225IW-DE 2MP PTZ Camera

Image Sensor:        1/2.8″ HD progressive scan CMOS

Effective Pixels:        1920(H)x1080(V)

Signal System:        PAL/NTSC

Minimum Illumination:        Color: 0.005 Lux @(F1.6, AGC ON)

B/W: 0.001Lux @(F1.6, AGC ON)

0 Lux with IR

White Balance:        Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

AGC:        Auto/Manual

BLC:        ON/OFF

HLC:        Support

Smart defog:        Support

WDR:        120dB

Shutter Time:        1-1/10,000s

Day& Night:        ICR

Digital Zoom:        16X

Privacy Masking:        24 privacy masks programmable; optional multiple colors and mosaics

Auto Focus:        Auto / Semi-automatic / Manual

Hikvision DS-2DE4225IW-DE 2MP PTZ Camera Lens

Focal Length:        4.8 mm to 120 mm, 25Ã optical zoom

Zoom Speed:        Approx. 3.6 s (optical lens, wide-tele)

Angle of View:        Horizontal field of view: 57.6Â to 2.5Â (Wide-Tele)

Vertical field of view: 34.4Â to 1.4Â (Wide-Tele)

Diagonal field of view: 64.5Â to 2.9Â (Wide-Tele)

Minimum Working Distance:        10-1,500mm(Wide-Tele)

Aperture Range:        F1.6 to F3.5

Pan & Tilt

Pan Range:        360Âendless

Pan Speed:        Configurable, from 0.1Â/s to 80Â/s,

Preset speed: 80Â/s

Tilt Range:        -15Â-90Â (Auto Flip )

Tilt Speed:        Configurable, from 0.1Â/s to 80Â/s,

Preset speed: 80Â/s

Proportional Zoom:        Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:        300

Patrol:        8 patrols, up to 32 presets per patrol

Pattern:        4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:        Support

Park Action:        Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan

PTZ Position Display:        ON/OFF


IR irradiation distance:        100m

IR irradiation angle:        Adjustable by zoom

Input & Output

Audio Input:        1-ch audio input

Audio Output:        1-ch audio output

Hikvision DS-2DE4225IW-DE 2MP PTZ Camera Network

Ethernet:        10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:        1920Ã1080

Main Stream:        50Hz:25fps (1920Ã1080,1280Ã960,1280Ã720), 50fps (1280Ã960,1280Ã720) ;

60Hz:30fps(1920Ã1080,1280Ã960,1280Ã720), 60fps (1280Ã960,1280Ã720)

Sub Stream:        50Hz: 25fps(704Ã576, 640×480,352Ã288); 60Hz: 30fps(704Ã480, 640×480,352Ã240)

Third Stream:        50Hz: 25fps(1920Ã1080, 1280Ã960, 1280Ã720, 704Ã576, 640×480,352Ã288)

60Hz: 30fps(1920Ã1080, 1280Ã960, 1280Ã720, 704Ã576, 640×480,352Ã288)

Video Compression:        Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264/MJPEG

Third Stream: H.265/H.264/MJPEG

ROI encoding:        Support 4 areas with adjustable levels

Audio Compression:        G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Audio Mode:        OFF/Audio input/Audio output

Protocols:        IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users:        Up to 20 users

Three-Stream:        Support

Mini SD Card:        Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

User/Host Level:        Up to 32 users, 3 levels: Administrator, Operator and User

Security Measures:        User authentication (ID and PW), host authentication (MAC address)

Hik-Connect:        Support

Client GUI

Client:        iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Web Browser:        IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Hikvision DS-2DE4225IW-DE 2MP PTZ Camera General

Menu Language:        English

Power Supply:        12VDC, PoE+

Power Consumption:        Max.: 18 W (Max. 7 W for IR)

Working Temperature/Humidity:        -30 ℃-65℃(-22℉-149℉)(outdoor)

90% or less

Protection Level:        IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Material:        ADC 12, PC, PC+10%GF

Dimensions:        Î 164.5 mm à 290 mm (Î 6.48″ à 11.42″)

Weight (approx.):        Approx. 2 kg (4.41 lb)
