GNT-P4804F6 outdoor 8port POE switch

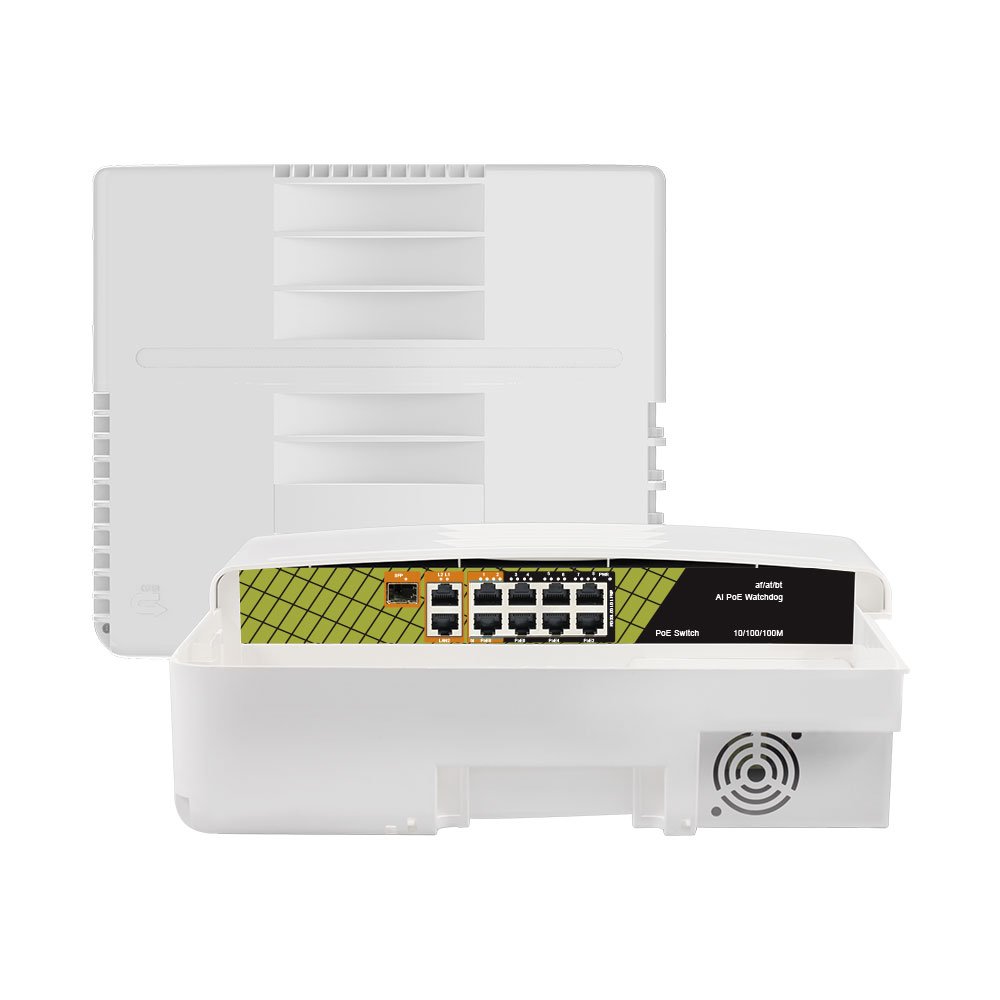

 Genata GNT-P4804F6 outdoor 8port POE switch

The Genata GNT-P4804F6 outdoor 8port PoE switch is an 8port POE Switch with 6ports of fast (PoE), 2gigabyte fast(PoE) port, 2-gigabyte ethernet(UP-LINK), 1SF port, and an IP67 weatherproof casing making it an  AI Hybrid 8port POE Switch suitable for outdoor installation. This device is capable of transmitting power and data signals over a distance of up to 130 meters. It features the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W.

Also, the Genata GNT-P4804F6 outdoor 8port PoE switch is builtin with the latest surge protection technology reaching 6KV lightning and 8KV Static electricity protection, the PoE ports own the capacity to keep the PoE Switch from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments. It also houses a 2-gigabyte port with a transmission speed of  1/100/1000Mbps.

Features

Model: GNT-P4804F6

Ports: 1*1000Mbps SFP Port+2*1000Mbps Uplink ports +2*1000Mbps PoE port(Compatible uplink) + 6*100Mbps PoE ports
Transmission Rate 2000Mbps Full-Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance: 0-130m
Bandwidth: 11.2 Gbps
Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port
Networking Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T, IEEE 802.3xFlowControl, IEEE 802.3af/at/bt Power over Ethernet
Power input: AC 110~220V Total≤120W
PoE Watchdog: Port 1-8
Power output: PoE1~6Port:1/2(+52V),3/6(GND)≤30W
PoE7~8Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W
Lightning Protection:6KV, Per: IEC61000-4-5
ESD Protection:8KV, Per: IEC61000-4-2
Physical Specifications: Size(L*W*H)：310mm*260mm*100mm
Operating Temperature: -30℃ ~60℃ ( -14°~131℉)
Storage Temperature: -40℃ ~70℃ ( -104°~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty
Whole machine: 1 Year
Package Content: Installation Manual

With the Genata brand of switches extending the transmission distance of your CCTV cameras has never been easier, just link it up to your NVR and add your cameras.
