GNT-P1008G6 8port GB POE switch

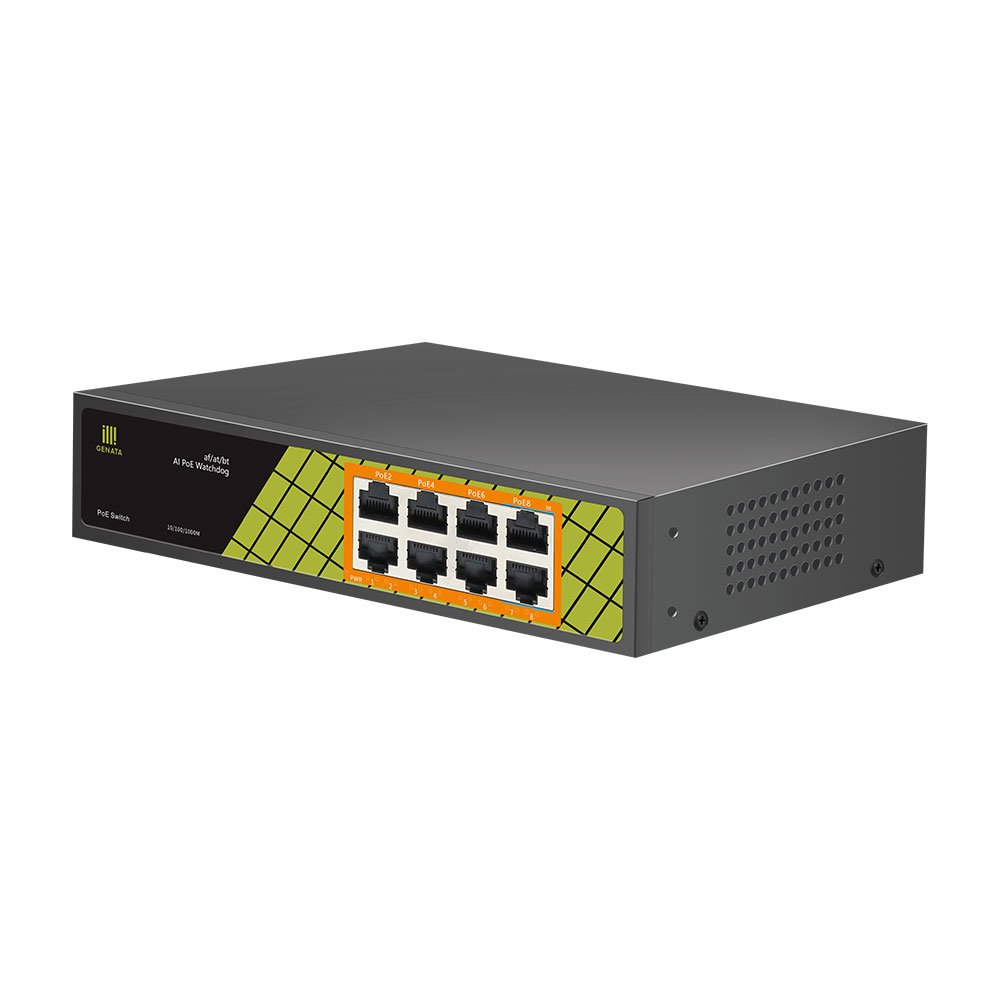

Genata GNT-P1008G6 8port GB POE switch

Genata GNT-P1008G6 8port Gigabyte POE switch is an 8port fast gigabyte (PoE) AI PoE Switch, capable of transmitting power and data signals over a distance of up to 130 meters.  Featuring the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, restarts the device after power failure and It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W.

53,000.00

Compare

Genata GNT-P1008G6 8port GB POE switch

The Genata GNT-P1008G6 8port Gigabyte POE switch is an 8port fast gigabyte (PoE) AI PoE Switch, capable of transmitting power and data signals over a distance of up to 130 meters.  Featuring the new AI Watchdog PoE, which automatically detects the power receiving port, finds a dead device, and restarts the device after power failure. It also complies with IEEE 802.3af / at/bt standard, single-port MAX output power is 60W. Also, the Genata GNT-P1008G6 8port Gigabyte POE switch houses an 8-gigabyte port with a transmission speed of  1/100/1000Mbps, a 6KV Lightning protection,8KV electro-static protection, Short-circuit protection, Over-Temperature protection that helps in Preventing the device from the surge.

Features

Model: GNT-P1008G6

Ports: 8*1000Mbps up-link or 8*1000Mbps PoE ports can be converted to each other
Transmission Rate: 2000Mbps Full-Duplex; 10 or 100 or 1000Mbps Half Duplex
Transmission Distance: 0-130m
Bandwidth: 16.0Gbps
Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
MAC address table: 8K
The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 148800pps the most for 100M port,1488000pps the most for 1000M port
Networking Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T, IEEE 802.3xFlowControl, IEEE 802.3af/at/bt Power over Ethernet
Power Support:  AC 110~240V; PoE powered by Total≤60W PoE Watchdog
Lightning Protection: 6KV, Per: IEC61000-4-5
ESD Protection: 8KV, Per: IEC61000-4-2
Physical Specifications: Size(L*W*H):187mm*139mm*43mm
Operating Temperature: -10℃ ~55℃ ( -14°~131℉)
Storage Temperature: -40℃ ~70℃ ( -104°~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty: Whole machine: 1 year
Package Content: Installation Manual

With the Genata brand of switches extending the transmission distance of your CCTV cameras has never been easier, just link it up to your NVR and add your cameras.
