GNT-AP260 300mbps Access Point

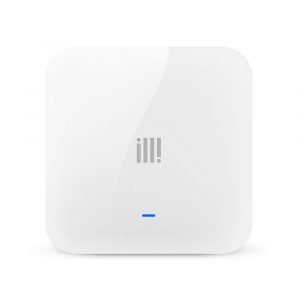

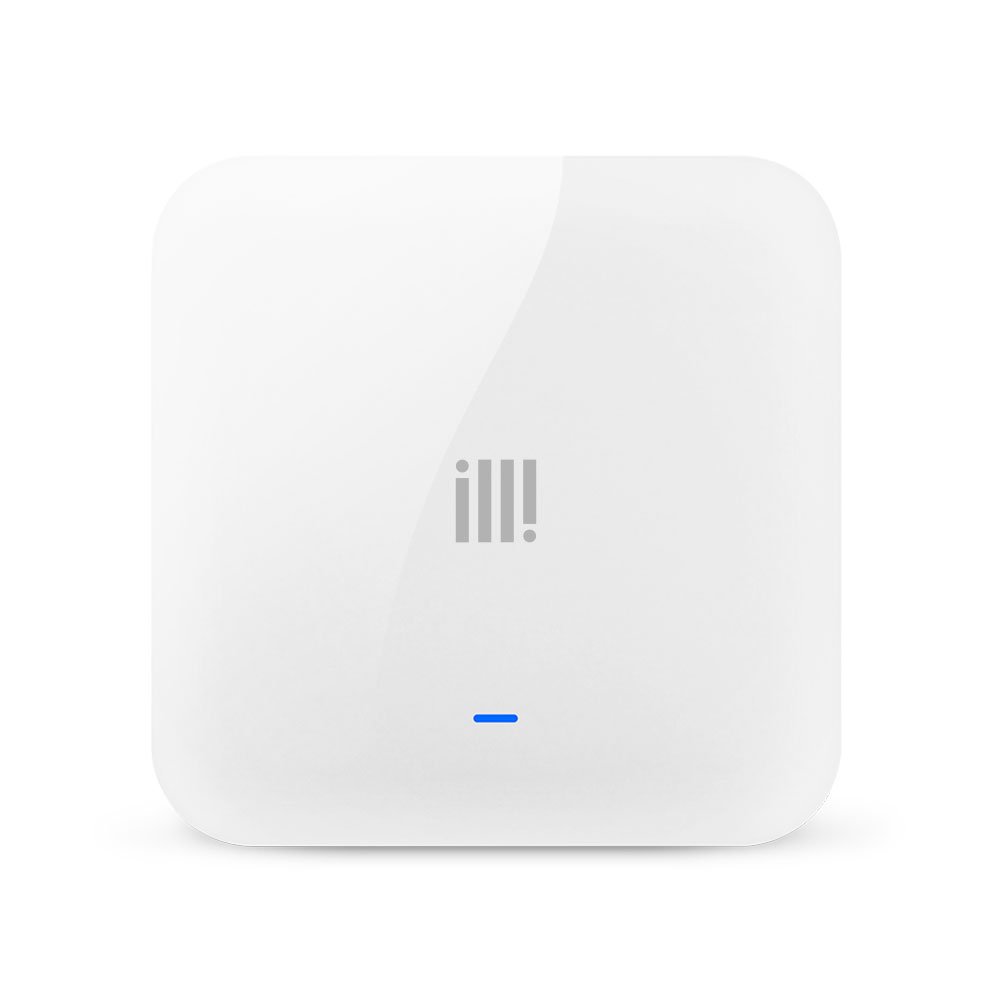

Genata GNT-AP260 300mbps Access Point

The Genata GNT-AP260 300mbps Access Point is a high-power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. built to comply with the IEEE 802af standard, which enables high-efficiency power consumption, low heat generation, and a longer standby time.

Also equipped with an adjustable transmission RF power the Access Point is able to adjust power based on the environment, by cutting down power in places with a high density of people or wireless AP in other to reduces WI-FI interference and also increase RF power in large areas to improve the signal strength.

Features

Model: GNT-AP260

MCU: Qualcomm QCA9531
RF: 2T2R, 300Mbps MIMO tech, comply with IEEE 802.11b/g/n standard
Memory: 128MB DDR RAM
Flash:16MB
Interface: 2 x RJ-45 for 10/100Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE)
Reset button: 1  (Reset & Factory Defaults)
Power DC Jack: 1
Power DC: 12V/1A; POE: IEEE 802.3af 48V PoE, 110V/220V
Antenna: Build in 2PCS Omni 5dbi antenna
Size: 18.9*3.85cm 18.9*3.85cm 18.9*3.85cm 18.9*3.85cm

Frequency: 802.11b/g/n, 533MHz< 2.4~2.4835GHz

Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, DSSS = DBPSK, DQPSK, CCK
Throughput: 300Mbps
PPM: ±20ppm
Max Uses: 64+

Operation Mode: Gateway/ AP/ Repeater
Protocol/Standard:IEEE 802.3(Ethernet), IEEE 802.3u(Fast Ethernet), IEEE 802.11b/g/n(2.4G WLAN)
Security: WEP Encryption-64/128/152 bit, WPA/WPA2 Personal (WPA-PSK using TKIP or AES), WPA/WPA2 Enterprise (WPA-EAP using TKIP)

the new and innovative design of the Genata GNT-AP260 300mbps Access Point makes it easy to install on the ceiling.
