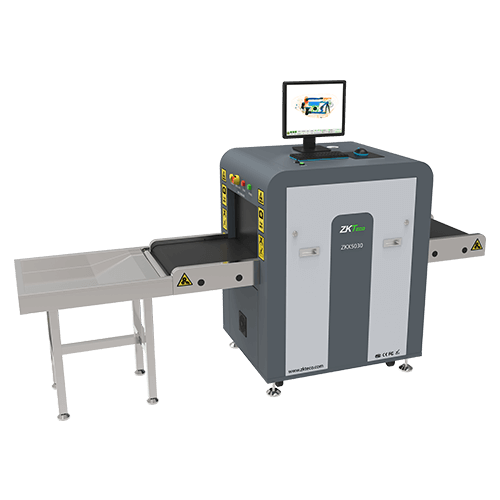

ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry on baggage, small cargo parcels.
ZKX5030A uses reliable high quality single energy X-ray generator. With the superb image algorithm, ZKX5030A could offer clear scanning image, which allows operators to identify
ZKTeco ZKX5030A Conveyor Parameter
| Tunnel Size | W507mm*H305mm |
| Speed | 0.20m/s |
| Hight of Transmission Belt | 730 mm |
| Maximum Load | ≤120Kg(Adequate distribution) |
| Wire Resolution | 34 AWG(0.16mm metal wire) |
| Space Defintion | HorizontalΦ1.0mm/VerticalΦ2.0mm |
| Penetrate Definition | 32 AWG |
| Penetration | 8mm Steel board |
| Monitor | 17 inch LED |
| System Function | High density alarm, TIP, Luggage counter, System running timer, X- ray emitting timer, System maintainance, Training, 64 times continuous zoom in |
| Film Safety | ASA/ISO1600 standard of film safety |
| Tube Voltage | 80kV |
| Cooling | Seal oil cooling/100% |
| Single Inspection Dosage Rate | ≤1.0μGy |
| Radiation Leak Dosage | 0.1μGy/h(5cm from the shell) |
| Size | L1701mm x W796mm x H1150mm |
| Package Size | L1900mm × W990mm × H1485mm |
| Package Weight | 410KG |
| Power Consumption | 1kVA |
| Noise | 53.8dB(A) |
