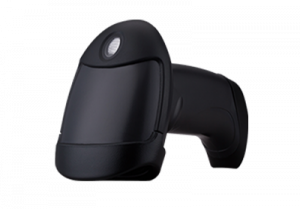

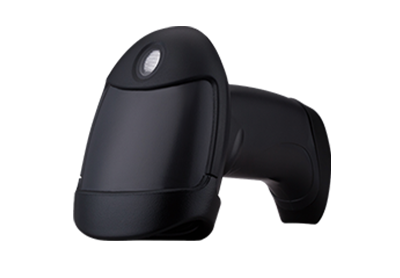

ZKTeco ZKB201 Barcode Scanner

ZKTeco ZKB201 Barcode Scanner

ZKB201 is an economical two-dimensional scanning scanner with simple integration, stable performance, and fast scanning speed. It also supports manual trigger and automatic continuous scanning mode.


Model Name ZKB201


ZKTeco ZKB201 Barcode Scanner General
Dimensions 175mm × 72mm × 100mm
Weight 160g (without cable)
Cable Length 1.8m
Interface Type RJ-45 Standard USB (Full Speed ,USB 2.0)
Material ABS+PC
Color RS-232, Black
User indicators LED, buzzer
Scanning Performance
Light source Lighting: white LED; Focusing: Green LED; Wavelength: 525nm
Image sensor 640×480 CMOS
Processor ARM32-bit
Startup time 4s
Analytical ability 1D: ≥5mil; 2D: ≥8.7mil ,PCS90%
Depth of focus 5mil: 50~130mm;13mil: 50~270mm
Scanning mode Manual scanning, automatic scanning
Reading angle Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater)
Field of view Horizontal 40°, Vertical 30°
Motion tolerance 2.3m/s
Power 160mA , 5V DC
Light levels 70000Lux
Decode capabilities 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Environmental Characteristics
Operating Temp. -20°C to 55°C
Storage Temp -20°C to 60°C
Relative Humidity 5% to 95% (non-condensing)
Protection IP54
Drop Test 1.8m, 100times
High and low temperature test Work properly for 30 minutes under simulation of temperature of -20°C and 60°C
Transport vibration test 10H@125RPM

Advanced CMOS image recognition technology, intelligent image recognition system, and patent lighting technology are applied. Therefore, the scanner can read all kinds of one-dimensional and two-dimensional barcodes in high-speed and all-around way.

    • Plug and play without driver installation
    • Direct transmission of information of multi-language barcodes
    • Adopt 32-bit master chip and patented software
  • Maintain long-term sensitivity.
