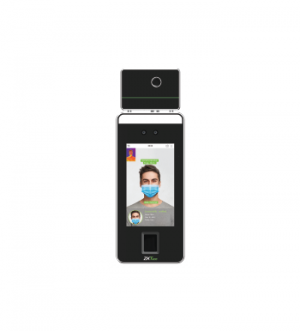

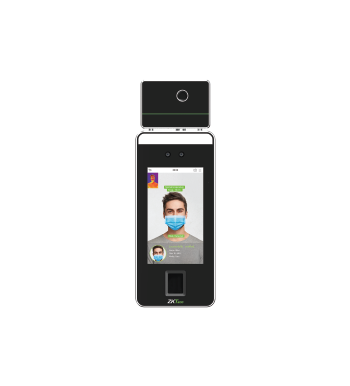

ZKTeco SpeedFace V5L[TI] Device

ZKTeco SpeedFace V5L[TI] Device

  • Contactless biometrics Access Control terminal
  • Thermal Imaging Temperature Detection
  • Crowd Control Security
  • Face & Palm Verification
  • 0.5s High Speed Face & Palm recognition with Temperature Detection
  • Up to 120cm Measurement Distance
  • Masked Face detection



ZKTeco SpeedFace V5L[TI] Device

ZKTeco SpeedFace V5L[TI] Device is a fully upgraded version of the SpeedFace-V5L[TD] visible light facial recognition body temperature detection terminal, using Thermal Imaging intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports both facial and palm verification with large capacity and speedy
recognition, as well as improves security performance in all aspects.

ZKTeco SpeedFace V5L[TI] Device adopts touchless recognition technology and new functions namely temperature detection and masked individual identification which eliminates hygiene concerns effectively. It is also equipped with the ultimate antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print, and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.

The terminal with temperature and mask detection will be a perfect choice to help reduce the spread of germs and help prevent infections straightly at each access point of any premises and public areas such as hospitals, factories, schools, commercial buildings, stations during the recent global public health issue with its fast and accurate body temperature measurement and masked individual identification functions during facial and palm verification.

  • Visible Light Facial Recognition
  • Better hygiene with touchless biometric authentication, temperature detection and masked individual identification
  • Thermal Imaging Temperature Detection, 0.5s high Speed detection, measurement distance of 30 – 120cm
  • Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
  • Multiple Verification Methods: Face / Palm / Fingerprint / Password
  • Mask detection
  • Body temperature detection
  • Temperature Measurement Distance: 30cm ~ 120cm (0.98ft~ 3.94ft)
  • Temperature Measurement Accuracy: ±0.3°C – 0.5°C, tested in a distanc e o f 80cm (2.63ft ) unde r 25°C (77° F ) environment
  • Temperature Measurement Range: 20°C ~ 50°C (68°F ~ 1 22°F)
  • Compatible with ZKBioSecurity and ZKBioAccess IVS modules which have been developed to analyze real-time thermographic images

* Facial verification for masked individuals will increase FAR. Palm verification for masked individuals is recommended.
Temperature measurement data is for reference only, not for medical use.
SpeedFace-V5L[TI] is available for indoor enviroments without wind or direct sunlight.

ZKTeco SpeedFace V5L[TI] Device Feature
Display 5-inch Touch Screen
Face Capacity 6,000
Palm Capacity 3,000
Fingerprint Capacity 6,000 (Standard); 10,000 (Optional)
Transactions 200,000
Operation System Linux
Standard Functions ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Antipassback, Record Query, Tamper Switch Alarm, Multiple Verify Modes.
Hardware 900MHz Dual Core CPU, Memory 512MB RAM / 8G Flash, 2MP WDR Low Light Camera, Adjustable Light Brightness LED
Communication TCP/IP, WiFi (Optional), Wiegand input / output, RS485
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Facial Recognition Speed ≤0.5s
Biometrics Algorithms ZKFace V5.8 & ZKFinger V10.0 & ZKPalm V12.0
Power Supply 12V 3A
Operating Humidity 10% – 90%
Operating Temperature 16°C ~ 35°C (60.8°F ~ 95.0°F)
Dimensions (W*H*D) 92.0 * 262 * 23.5 (mm)
Supported Softwares ZKBioAccess, ZKBioSecurity
