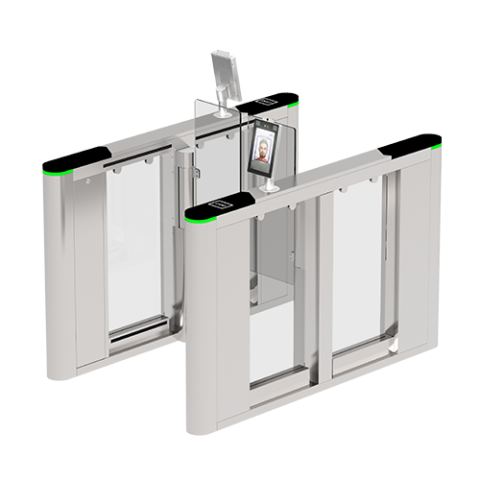

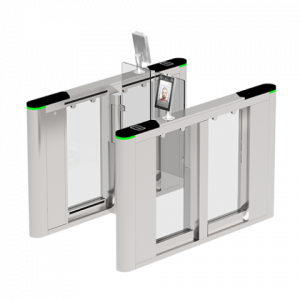

ZKTeco SBTL8033 Swing Barrier

ZKTeco SBTL8033 Swing Barrier

  • High-performance swing barrier for entrance control
  • Indoor speed gate for touchless Access Control
  • Touchless Entrance Control Solution compatible with ProFace X [TD] and SpeedFace V5L [TD]
  • Adapted for Body Temperature Measurement devices



ZKTeco SBTL8033 Swing Barrier

Safely screen employees or visitors wearing masks for high temperatures as they walk into buildings or defined areas with SBTL8033, an indoor speed gate series for convenient contact less access control compatible with and   which features a modular reader panel design. An ideal solution for office building access control, visitor management & retail.

As the number of cases has been increasing and the geographical spread has been widening, the novel corona virus outbreak has raised grave concerns about public health and personal hygiene.
It is proven that most germs are spread with our hands. Thus, a touch less entrance control solution effectively reduces the risk of the spread of infection in your premises and public areas.

  • Fast and accurate visible light facial recognition with wide angle tolerance for masked individuals
  • Body temperature detection
  • Instant facial recognition in 0.3s
  • Servomotor – faster gate opening speed
  • 10 pairs of infrared sensors for stronger tailgate detection
  • SUS304 stainless casing
  • Higher durability for longer product life cycle
  • Bi-directional operation control
  • LED passage indicator along the lane
  • Convenient installation and maintenance
  • Various optional panels
  • Emergency mode allows free access in case of power failures or emergency


  • ZKTeco SBTL8033 Swing Barrier


    Power Requirements AC 100 ~ 120V/200 ~ 240V, 50/60Hz
    Working Temperature -28°C ~ 60°C (-18.4°F ~ 140°F)
    Working Humidity 20% – 95% (Non-condensing)
    Working Environment Indoor
    Max. Speed of Throughput 40 people per minute
    Lane Width (mm) 660
    Dimensions (L*W*H) 1600 * 1040 * 1200 (mm)
    Packing Dimensions (L*W*H) 1700 * 300 * 1130 (mm)
    Net Weight (kg) 130kg
    Weight with Packing (kg) 150kg
    Cabinet Material SUS304 Stainless Steel
    Lid Material SUS304 Stainless Steel & Acrylic
    Barrier Material Acrylic
    Barrier Movement Swing
    Emergency Mode Supported
    Face Capacity 30,000 (1:N) / 50,000 (Optional)
    ZKTeco SBTL8033 Swing Barrier Compatibility 900 MHz Dual Core Customized CPU
    512MB RAM / 8G Flash
    8″ High Brightness (400lux) IPS Touch LCD
    2MP WDR Low Light Camera
    Dimensions of Facial Recognition Device (H*L*D) 227 * 143 * 26 (mm)
    Facial Recognition Distance of Masked Individuals 3m
    Temperature Deviation ±0.3°C (±0.54°F)
    Detection Distance 25cm – 50cm
    Detection Speed >0.5s
    Posture Angle Tolerance +/-30 degrees
