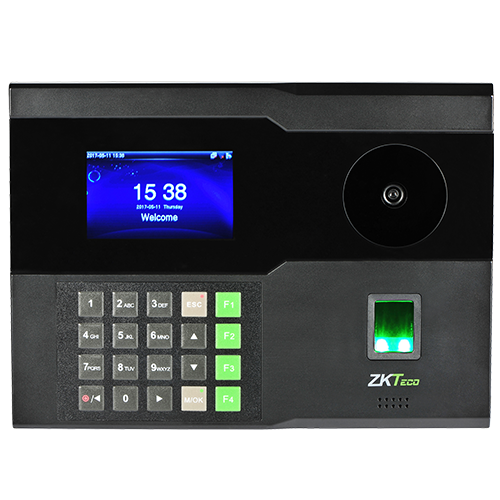

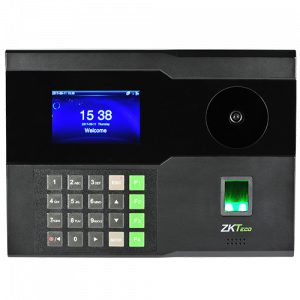

ZKTeco P260 Multi-Biometric

ZKTeco P260 is a multi-biometric identification time & attendance and access control terminal, which can connect with third party electric lock, door sensor, and exit button etc.
ZKTeco P260 comes with the latest palm/fingerprint identification algorithm and streamlined technology, it can hold 600 palm templates and up to 10,000 fingerprint templates without dividing into groups.
ZKTeco P260 multi-biometric identification time & attendance and access control terminal communicates via Wi-Fi, TCP/IP, and USB host, it ensures a smooth connection and data transfer. Amazing verification speed and intuitive operation process make it popular. Elaborately designed and finely processed, it matches your slap-up office perfectly.

ZKTeco P260 Multi-Biometric Features

1 channel auxiliary input for smoke detector connection
Advance access function including lock connection, alarm, wiegand input and output
Build in battery, upto 4 hours
Stable operation under strong light source
Build in PoE
Multiple communicate mode, Wi-Fi, TCP/IP, 3G, USB host
600 Palms, 3,000Fingerprints, 10000 ID Cards and 100,000 records

ZKTeco P260 Multi-Biometric Specification

Product P260
Main Biometric Fingerprint and Palm
RF Optional 125kHz EM / 13.56MHz MF
Capacity Max User(1:N) 10,000
Max Fingerprint (1:N) 3,000 standard / 10,000 Optional
Max Palm (1:N) 600
Interface TCP/IP 10/100 M
PoE Optional 802.3 at 28W
Wi-Fi 802.11 B/G/N
3G Optional WCDMA
USB USB 2.0 (Host)
RS232 1 port for external printer
RS485 1 port for FP reader
Relay 2 relays
Wiegand 1ch In & Out
Input 1 Input
Hardware LCD 3.0” Color LCD
Sound 24-bit
Operating Temp. 0 °C – 45 °C
Operating Humidity 20% ~ 80%
Power DC 12V 3A
Dimensions(W x H x D mm) 213*155*107.81mm
Certificates CE, FCC, RoHS
Function Standard Automatic Status Switch, Self-Service Query, DST, T9 Input, 9 Digit User ID,

Scheduled Bell, Photo ID, Lock, sensor, Exit button

Optional ID / MF, ADMS
Compatibility ZKTime.net 3.0, ZKAccess 3.5, BioTime 8.0
Net Weight 0.4kg
