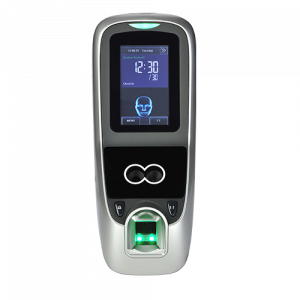

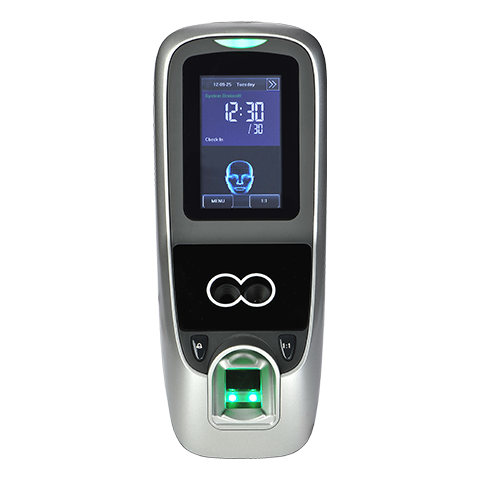

ZKTeco MultiBio 700 Access control-ID
MultiBio700 can be used as a standalone access control reader by connecting a door lock, exit switch, alarm and door sensor to the relay contacts. The Wiegand IN and OUT ports can be used to connect 3rd party access control panels and peripherals. The MultiBio700 also includes a USB port for offline data backup/management
ZKTeco MultiBio 700 Access control-ID Parameter
Display | 3-inch Touch Screen |
Face Capacity | 1,500 (1:N) |
Fingerprint Capacity | 2,000 |
Card Capacity(optional) | 10,000 |
Log Capacity | 100,000 |
Camera | High Resolution Infrared Camera |
Sensor | ZK Optical Sensor |
Communication | TCP/IP, RS232/485, USB-host |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, wired doorbell |
Anti-pass back Function | Yes |
Wiegand Signal | Input & Output |
Standard Access Control Function | Time Zone, Group, Multi-identification Duress mode, Anti-passback, Tamper alarm |
Optional Functions | ID Card, Mifare Card |
Power Supply | 12V DC |
Operating Temperature | 0 – 45 °C |
Operating Humidity | 20% -80% |
Dimension(L×H×D)mm | 209.4×87.5×91.6 |
Gross Weight | 0.87kg |
