ZKTeco EX16 Elevator Control

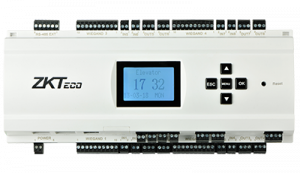

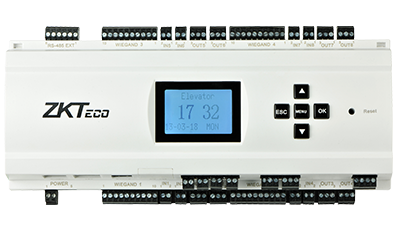

The EC10 Elevator Control Panel can restrict access up to ten floors. The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors. Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle. Note EC10 panels can be daisy-chained together to control as many floors as desired.
Our powerful yet easy to use software makes the Elevator Control System very easy to manage. SDK is available for software companies which desire to integrate with the system.
ZKTeco EX16 Elevator Control Parameter
| Model | EC10 |
| Floor Button Control Relay | 10 |
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30000 |
| Event Capacity | 100000 |
| Power Supply | 12V DC 1A |
| Communication to PC | TCP/IP, RS485 |
| Communication to EX16 | RS485 |
| Number of supported EX16 | 3 |
| Dimension(L×D×H) | 242mm*95mm*60mm |
| Net weight | 0.8Kg |
| Model | EX16 |
| Floor Button Control Relay | 16 |
| Communication to EC10 | RS485 |
| RS485 address | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimension(L×D×H) | 160mm*106mm |
| Net weight | 0.2Kg |
