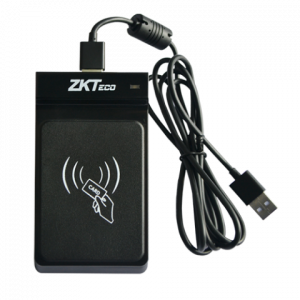

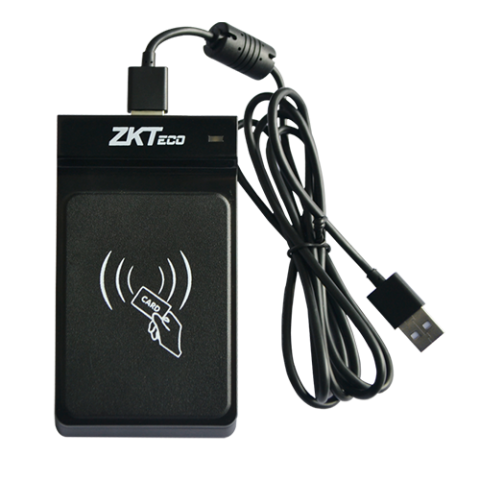

ZKTeco CR10MW USB Reader
CR20 Series are accessories designed to read (CR20E/M) & write (CR20M/W) proximity cards. They are connected to PC through USB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR20M/W includes communication protocol for development and it’s compatible with S.O Windows 32 bits. CR20E and CR20M are compatible with windows S.O and read the same serial number as ZKTeco devices.
- Frequency 125KHz (CR10E), 13.56MHz (CR10M/CR10M-W)
- Read Range: Up to 10CM (125 KHz) / Up to 5CM (13.56MHz)
- Read card number only (CR10E/CR10M)
- Read and write functionality (CR10M/W)
- USB Interface
- Power by USB
- High speed transactions
- LED Indicator and buzzer feedback
- No need driver (emulation keypad) Compatible with windows98/2000/XP/Vista/windows7 (CR10E/M)
- Communication protocol available for development (CR10M/W)
- Compatible with windows2k/2003/XP/Vista (32bits)/windows7 (32bits)
ZKTeco CR10MW USB Reader Specification
| Model | CR10E |
| Read Range | Up to10CM (CR10E) 5CM(CR10M) |
| Power / Current | USB 5V DC / Max. 100mA |
| LED Indicator | 2 Color LED Indicators (Red&Green) |
| Beeper | yes |
| Operating Frecuency | 125KHz (CR10E) 13.56MHz (CR10M |
| Operating temperature | -10º to +70º |
| Operating Humidity | 10% to 90% ( relative humidity non- considered) |
| Operating temperature | -20° to +65°C |
| Operating Humidity | 10% to 90% (relative humidity non-considered) |
| Color | Black |
| Material | ABS+PC with texture |
| Dimension: (WxHxT) mm | 140x100x30 |
| Weight | 120g |
| Operating system support | IEmulation Keypad (Compatible with WIN98/2000/XP/VISTA/7) |
