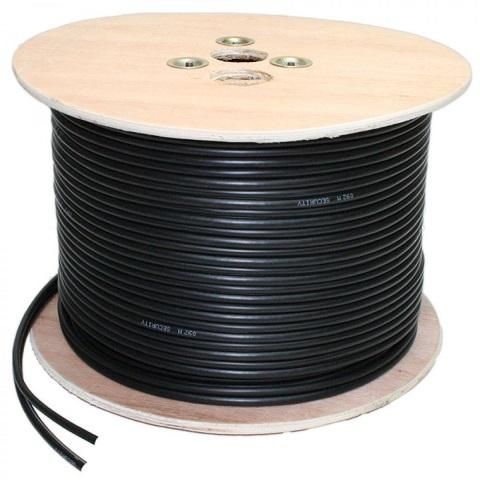

Reel RG59 Coaxial and Power Cable

Reel RG59 Coaxial and power Cable

Overview

Commonly used for connecting CCTV cameras to a DVR whilst also allowing the CCTV camera to be powered from the DVR location. To use this cable, you will also require BNC connectors, 2.1mm DC connectors and a correctly rated power supply for your camera.

Specification

Coaxial cable core – CCS 0.58}0.01mm
Braiding: 16×3/0.12}0.003(AL/MG)
Power cable core x 2 – CCA 30/0.18}0.004mm (0.75mm2 Area Approx)
Outer Diameter – Coaxial 6mm, Power 5mm
PVC Jacket
Conductor resistance:?365 Ohm/KM
Insulation resistance:?5000M Ohm/KM
Testing voltage: Wire/wire/screen 50Hz 1Min = 1.5KV
Colour: Black
