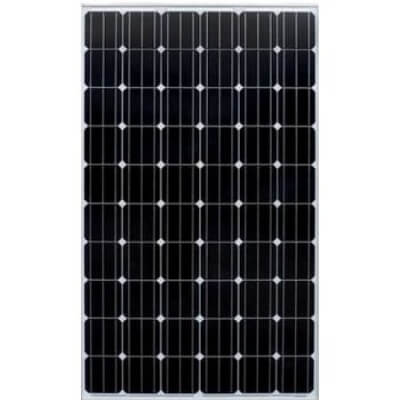

MONOCRYSTALLINE PANEL 300WATT


Dimensions

Panel size: (1470 x 680 x 25 mm)
IP code of the junction box: IP 65
Cell number and type: 36 Monocrystalline Silicon CELLS
Module weight: 14.0 kg
Glass, type and thickness: High transmissivity, Low Iron, Tempered Glass 3.2mm

85,000.00

Compare

MONOCRYSTALLINE PANEL 300WATT

Sunshine Solar manufactures and distributes photovoltaic modules of high quality for a wide range of markets and there award-winning product 300W series is now also available in Nigeria

Sunshine Monocrystalline high-efficiency solar panel is Ideal for isolated solar power systems, these photovoltaic panels can be used individually or associated, serving energy systems of different sizes and providing electricity for all kinds of application.

  • 300Watt Monocrystalline solar panel
  • High conversion ratio
  • MC4 plugs pre-installed

TECHNICAL SPECIFICATIONS

Test standard conditions (STC *)

Maximum power (Pm): 300 Watts
Tolerance: -3% / + 3%
Maximum Output Voltage (R): 18.60 Volts
Maximum power current (Im): 8.06 Amps
Open circuit voltage (Voc): 22.30 Volts
Short Circuit Current (Isc): 8.60 Amps
Maximum System Voltage: 1000 Volts DC
Panel efficiency: +17.0%
Power temperature coefficient (Pm): -0.45% / ° C
Current temperature coefficient (Isc): The 0.06 / ° C
Temperature Coefficient voltage (Voc): -0.37 V / ° C
Cell Temperature Operating Nominal (TNOC / NOCT): 46 ± 2 ° C

* STC / CPT: Irradiation 1000 W / m², Air Mass Spectrum 1.5 and cell temperature of 25 ° C



Dimensions

Panel size: (1470 x 680 x 25 mm)
IP code of the junction box: IP 65
Cell number and type: 36 Monocrystalline Silicon CELLS
Module weight: 14.0 kg
Glass, type and thickness: High transmissivity, Low Iron, Tempered Glass 3.2mm

 APPLICATIONS

    • Public lighting systems and residential
    • Eletrificações homes and communities in remote areas, summer houses, health centers, etc.
    • Radio repeater stations VHF, UHF and microwave
    • Alarm and CCTV systems
    • Recreational vehicles (boats, sailboats, trailers, …)
    • Quality system monitoring water and environment
    • Navigation systems and ocean buoys
    • Water pumping systems (pumps 12 volts DC)
    • Obstruction lights airlines
    • Cathodic protection systems
    • Signalling Systems
