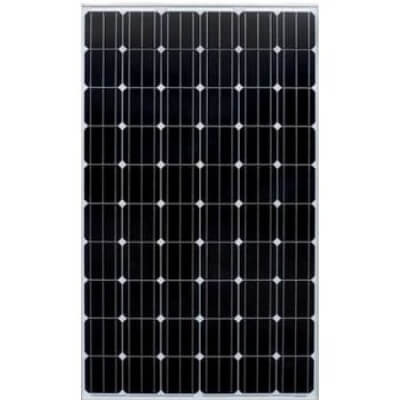

MONOCRYSTALLINE PANEL 250WATT
Description
MONOCRYSTALLINE PANEL 250WATT
Sunshine Solar manufactures and distributes photovoltaic modules of high quality for a wide range of markets and there award-winning product 200W series is now also available in Nigeria
Sunshine Monocrystalline high-efficiency solar panel is Ideal for isolated solar power systems, these photovoltaic panels can be used individually or associated, serving energy systems of different sizes and providing electricity for all kinds of application.
- 250Watt Monocrystalline solar panel
- High conversion ratio
- MC4 plugs pre-installed
TECHNICAL SPECIFICATIONS
Test standard conditions (STC *)
| Maximum power (Pm): | 200Watts |
| Tolerance: | -3% / + 3% |
| Maximum Output Voltage (R): | 18.60 Volts |
| Maximum power current (Im): | 8.06 Amps |
| Open circuit voltage (Voc): | 22.30 Volts |
| Short Circuit Current (Isc): | 8.60 Amps |
| Maximum System Voltage: | 1000 Volts DC |
| Panel efficiency: | +17.0% |
| Power temperature coefficient (Pm): | -0.45% / ° C |
| Current temperature coefficient (Isc): | The 0.06 / ° C |
| Temperature Coefficient voltage (Voc): | -0.37 V / ° C |
| Cell Temperature Operating Nominal (TNOC / NOCT): | 46 ± 2 ° C |
* STC / CPT: Irradiation 1000 W / m², Air Mass Spectrum 1.5 and cell temperature of 25 ° C
Dimensions
| Panel size: | (1470 x 680 x 25 mm) |
| IP code of the junction box: | IP 65 |
| Cell number and type: | 36 Monocrystalline Silicon CELLS |
| Module weight: | 14.0 kg |
| Glass, type and thickness: | High transmissivity, Low Iron, Tempered Glass 3.2mm |
APPLICATIONS
-
- Public lighting systems and residential
- Eletrificações homes and communities in remote areas, summer houses, health centers, etc.
- Radio repeater stations VHF, UHF, and microwave
- Alarm and CCTV systems
- Recreational vehicles (boats, sailboats, trailers, …)
- Quality system monitoring water and environment
- Navigation systems and ocean buoys
- Water pumping systems (pumps 12 volts DC)
- Obstruction lights airlines
- Cathodic protection systems
- Signalling Systems
