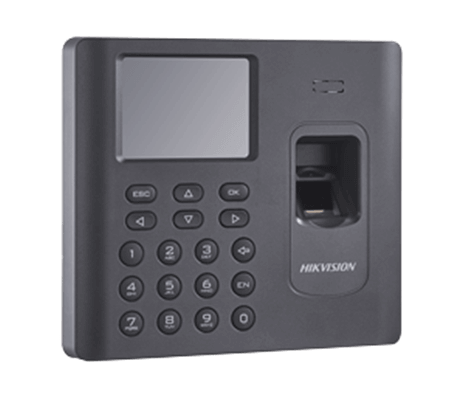

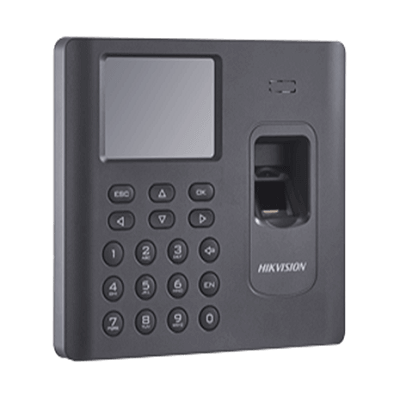

Hikvision DS-K1A802EF-B Access Control

Hikvision DS-K1A802EF-B Access Control

  • LCD Display Standalone Access Control Terminal
  • Built-in EM card reading module
  • Storage with 3,000 cards
  • 3,000 fingerprints and 100,000 access control events
  • Supports Time Attendance function
  • Generates Reports Automatically, Optical Fingerprint Module
  • Uplink Communication: TCP-IP
  • WIFI. Supports Lithium Battery.



Hikvision DS-K1A802EF-B Access Control

System Parameters
Fingerprint Recognition Duration: < 1 s
Operation System: Linux
Storage: 3,000 cards, 100,000 events, 150,000 attendance records
FRR (False Rejection Rate): ≤0.01%
Card Reading Distance: 1 ~ 5cm
iVMS-4200: Support
FAR (False Accept Rate): ≤0.001%
Fingerprint Comparing Mode: 1:1 and 1:N, N=3000
Card Reading Mode: Supports EM Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment
Card Reading Response Duration: < 1 s
Fingerprint Recognizer: Optical Fingerprint Recognizer Module
Fingerprint Capacity: 3,000


Device Interfaces
Transmission Rate: LAN: 10/100 Mbps Self-adaptive
Wi-Fi: Support
USB Interface: USB2.0, Type A


Hikvision DS-K1A802EF-B Access Control General
LCD Screen: 2.8-inch 320 x 240 LCD-TFT Display Screen
Key Board: Physical Keys (No Back Light)
Lithium Battery: Lithium Battery 2000mAh
Power Supply: 12 VDC/1 A
Audio: 1 Buzzer and 1 Loudspeaker
Appearance Color: Black (Included), Gold (Optional), Silver (Optional), White (Optional)
Installation: Surface Mounting, Metal Door Mounting, Desk Stand
Application Situation: Indoor
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -10° C to 55° C (14° F to 131° F)
Dimensions (L×W×H): 140mm × 155mm × 30mm (5.51″ × 6.01″ × 1.18″)
