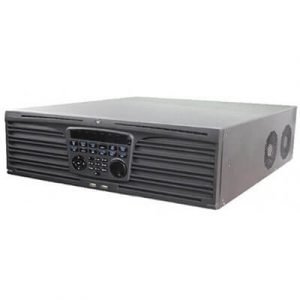

Hikvision DS-9664NI-I8 64Ch NVR Specs
| IP Video Inputs | 64-channel |
| Two-Way Audio Input | 1 channel, RCA (2 V p-p, 1 kOhm) |
| Bandwidth | Input: 320 Mb/s |
| Output Bandwidth | 256 Mb/s |
| Remote Connection | 128 |
| Network Protocol | Hikvision, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.4), Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, Zavio |
| HDMI Output Resolution | 2-Channel HDMI1: 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz HDMI2: 3840 x 2160 @ 30 Hz, 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz |
| VGA Output Resolution | 1-Channel 1920 x 1080p @ 60 Hz, 1600 x 1200 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz |
| Audio Output | 1-channel, RCA (linear, 1 kOhm) |
| Decoding Formats | H.264, MPEG4, MJPEG |
| Recording Resolution | 8 MP / 5 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 16-channel |
| SATA | 8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8 HDDs |
| eSATA Port | 1 |
| Capacity | Installed: 42 TB Up to 4 TB capacity for each HDD |
| Array Configuration | Array Type: RAID0, RAID1, RAID5, RAID10 Number of Array: 8 |
| Network Interface | Interface: 2 x 10/100/1000 Mb/s self-adaptive Ethernet interface |
| Serial Interface | 1 x RS-232, 1 x RS-485, 1 x keyboard |
| USB Interface | 2 x USB 2.0 (front panel) 2 x USB 3.0 (rear panel) |
| Alarm Input / Output | 16 x input 4 x output |
| Hikvision DS-9664NI-I8 64Ch NVR General Spec | |
|---|---|
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤100 W without HDD or DVD-R/W |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10 to 90% |
| Chassis | 19″ rack-mounted 2 RU chassis |
| Dimensions (W x D x H) | 17.5 x 18.5 x 3.5″ / 44.5 x 47.0 x 9.0 cm |
| Weight | ≤17.6 lb / 8.0 kg, without HDD or DVD-R/W |
