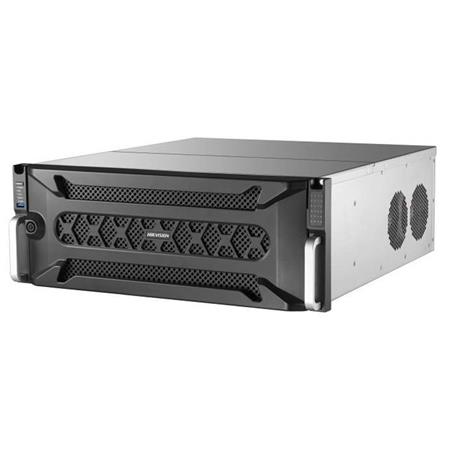

Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR

Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR Video/Audio Input
IP Video Input 32-ch
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K Ω)
Network
Video Compression H.265+, H.265, H.264+, H.264, MPEG4
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 256 Mbps, or 200 Mbps (when RAID is enabled)
Remote Connections 128
Video/Audio Output
RecordingResolution 12MP/8MP/6 MP/5MP/4 MP/3MP/1080p/UXGA/720p/VGA/
4CIF/DCIF/2CIF/CIF/QCIF
VGA1/HDMI1 Output Resolution
HDMI1: 4K (3840 × 2160), 2K (2560 × 1440), 1920 × 1080,
1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
HDMI2: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
VGA2/HDMI2 Output Resolution
VGA1: 2K (2560 × 1440), 1920 × 1080, 1600 × 1200,
1280 × 1024, 1280 × 720, 1024 × 768
VGA2: 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio Output 2-ch, RCA (2.0 Vp-p, 1 K Ω)
Decoding

Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR

Decoding Format H.265+, H.265, H.264+,H.264/MPEG4
Live View/Playback Resolution 12MP/8MP/6 MP/5MP/4 MP/3MP/1080p/UXGA/720p/
VGA/4CIF/DCIF/2CIF/CIF/QCIF
SynchronousPlayback 16-ch
Capability 4-ch @ 4 K, or 16-ch @ 1080p
Hard Disk
SATA 16 SATA interfaces for 16 HDDs
eSATA 1 eSATA interface
Capacity Up to 6 TB capacity for eachHDD
Disk Array
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
Number of Arrays 4
External Interface
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface RS-232; RS-485;keyboard
USB Interface Front panel: 2 × USB 2.0; rear panel: 1 × USB3.0
Alarm In/Out 16/8
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Maximum Power 300 W
Consumption (w/o hard disk) ≤ 45 W (without HDD or DVD-RW)
WorkingTemperature -10° to +55° C (14 to 131° F), 10% to 90% humidity
Chassis 19-inch rack-mounted 2Uchassis
Dimensions (W × D × H) 445 mm × 496 mm × 146 mm (17.5″× 19.5″ × 5.7″)
Weight (w/o hard disk) ≤ 12.5 Kg (27.6 lb)

Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR

• Video And Audio
• IP Video Input64-ch
• HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• LCD OutputOptional: One 7 inch LCD
• Incoming Bandwidth512 Mbps/512 Mbps
• TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
• Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

• Decoding
• Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Decoding Capability3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)
• Synchronous PlaybackUp to 16 channels
• Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR Network
• Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
• Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
• Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

• PoE
• InterfaceN/A

• RAID
• RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10
• Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR

• Auxiliary Interface
• Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR SATA16 SATA interfaces supporting hot-plug
• ESATA1 × eSATA interface, 2 × mini SAS interface (optional)
• CapacityUp to 10 TB for each HDD
• Serial InterfaceRS-232; RS-485; Keyboard
• USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
• Alarm In/Out16/8
• Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

• Hikvision DS-96064NI-I16 64-ch 3U 4K Super NVR
• Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
• Consumption≤ 140W
• Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
• ≤ 16 kg (35.3 lb)
