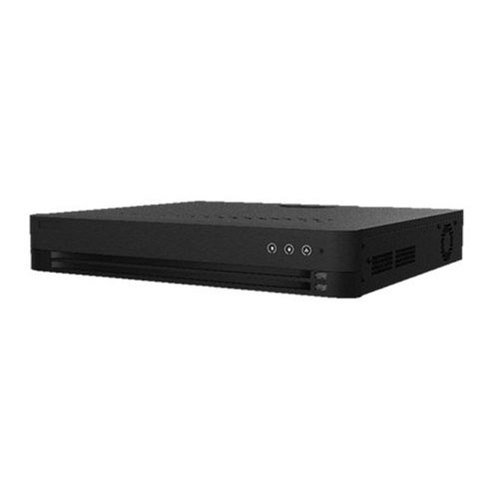

Hikvision DS-7732NI-Q4/16P NVR
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 32-ch | |
| IP Video input: | Up to 8 MP resolution | |
| Hikvision DS-7732NI-Q4/16P NVR Network | ||
|---|---|---|
| Incoming bandwidth: | 200Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI Output: | 1-ch, resolution: 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Synchronous Playback: | 16-ch | |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Decoding | ||
|---|---|---|
| Decoding format: | H.265/H.265+/H.264/H.264+/MPEG4 | |
| Capability: | 1-ch @ 8 MP / 4-ch @ 1080p | |
| Live view / Playback: | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface | |
| Serial Interface: | RS-232; RS-485; | |
| POE | ||
|---|---|---|
| Interface: | 24 independent 10/100 Mbps PoE Ethernet interfaces | |
| Supported Standard: | AF and AT | |
- Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
- HDMI/VGA independent output (DS-7708NI-Q4/8P and DS-7716NI-Q4/16P)
- HDMI and VGA simultaneous outputs (DS-7732NI-Q4/16P)
- HDMI Video output at up to 4K (3840 × 2160) resolution (DS-7708NI-Q4/8P and DS-7716NI-Q4/16P)
- 4 SATA interfaces connectable for recording and backup
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- 1 self-adaptive 10/100/1000 Mbps network interface
- 8/16 independent PoE network interfaces are provided
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Hik-Connect for easy network management.
| Hikvision DS-7732NI-Q4/16P NVR General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Power: | ≤ 300 W | |
| Consumption(without hard disk and POE): | ≤ 15 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Dimensions: | 440 × 393 × 75 mm (17.3″ × 15.5″ × 3.0″) | |
| Weight(without HDD): | ≤ 5 kg (11 lb) | |
