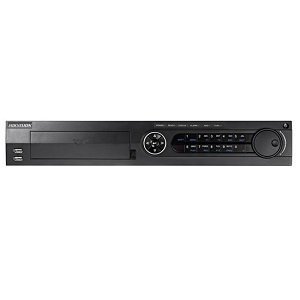

DS-9632NI-I8 is Hikvision‘s new 4K Network video recorder with capacity for 10 external hard disk drives.
| DS-9632NI-I8 Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 32-ch | |
| Network | ||
|---|---|---|
| Remote connection: | 128 | |
| Incoming bandwidth: | 320Mbps or 200Mbps(when RAID is enabled) | |
| Outgoing bandwidth: | 256Mpbs or 200Mbps(when RAID is enabled) | |
| DS-9632NI-I8 Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 2-ch, resolution: HMDI1:4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 2-ch, RCA (2.0Vp-p, 1KΩ) | |
| Synchronous Playback: | 16-ch | |
| Decoding | ||
|---|---|---|
| Capability: | 4-ch@8MP,16-ch@1080P | |
| Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Hard Disk | ||
|---|---|---|
| Interface Type: | 1 eSATA interface | |
| SATA: | 8 SATA interfaces for 8 HDDs | |
| Capacity: | Up to 6TB capacity for each HDD | |
| Disk array | ||
|---|---|---|
| Array type: | RAID0, RAID1, RAID5, RAID10 | |
| Number of array: | 4 | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | |
| Serial Interface: | RS-232, RS-485, Keyboard | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC, 50 to 60 Hz | |
| Consumption(without hard disk and POE): | ≤30 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 2U chassis | |
| Dimensions: | 445 × 470 ×90 mm (17.5″× 18.5″ × 3.5″) | |
| Weight(without HDD): | ≤ 10 Kg (22 lb) | |
