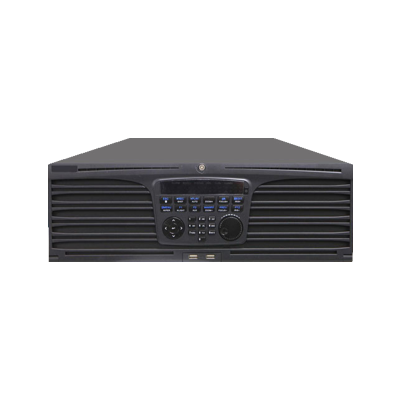

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR Camera
Image Sensor 1/2″ Progressive Scan CMOS
Min. Illumination Color: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°
Lens
Focal length 2.7 to 13.5 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 114° to 44°
Vertical field of view: 61° to 25°
Diagonal field of view: 136° to 50°
Lens Mount Φ14

IR
IR Range Up to 40 m
Wavelength 850nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection Scene change detection
Face Detection Yes

Max. Resolution 3840 × 2160
Main Stream
50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR
Image Enhancement BLC/3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
*Note: When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.

Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,

IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.61
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users

3 levels: Administrator, Operator, and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line-in, 3.5 mm), 1 output(3.5 mm), mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p composite output (75 Ω/BNC) (For adjustment only)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps(G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Hikvision DS-7632NI-I16 32-ch 3U 4K NVR
General Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.9A, max. 10.5W
PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Protection Level IP66, IK10
Material Front cover: metal, bottom base: metal, bubble: plastic
Dimensions Camera: Φ 153.4 × 133.1 mm (Φ 6″ × 5.2″)
Weight Camera: 1300 g (2.9 lb.)
With package: 1500 g (3.3 lb.)

• Hikvision DS-7632NI-I16 32-ch 3U 4K NVR
• HDMI 1 OutputVGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA OutputHDMI, VGA
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Incoming Bandwidth320 Mbps or 200 Mbps (when RAID is enabled),256 Mbps, or 200 Mbps (when RAID is enabled)
• Audio Output2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • /2CIF/CIF/QCI
  • Network
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Hikvision DS-7632NI-I16 32-ch 3U 4K NVR
  • Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • PoE
  • InterfaceN/A
  • RAID
  • RAID TypeYes
  • Auxiliary Interface
  • SATA16 SATA interfaces
  • ESATA1 eSATA interface
  • CapacityUp to 10TB capacity for each HDD
  • Serial InterfaceRS-232; RS-485; Keyboard
  • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
  • Alarm In/Out16/8
  • General
  • Power Supply100 to 240 VAC, 50 to 60 Hz 300 W
  • Consumption≤ 45 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Chassis3U
