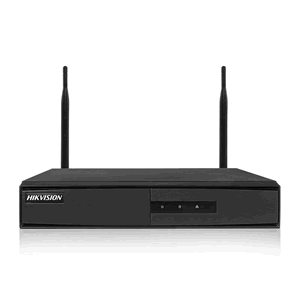

Hikvision DS-7604NI-K1/W 4Ch Wireless NVR Description
| Device Specifications | |
|---|---|
| Video/Audio Input | IP video input: 8-ch ; |
| Video/Audio Output | HDMI/VGA output: 1-ch, resolution: 1920 × 1080/ 60Hz, 1600 × 1200/ 60Hz, 1280 × 1024/ 60Hz, 1280 × 720/ 60Hz, 1024 × 768/ 60Hz; Audio Output: 1-ch, RCA (Linear, 1kΩ) |
| Decoding | Decoding format: H.265/ H.265+/ H.264/ H.264+/ MPEG4; Recording resolution: 5MP/ 4MP/ 3MP/ 1080p/ 1.3MP/ 720p; Synchronous playback: 8-ch; Capacity:4-ch @ 1080p |
| Network | Incoming bandwidth: 50Mbps; Outgoing bandwidth: 40Mbps |
| External Interface | Network Interface: 1, RJ45 100M Ethernet interface; USB Interface: Rear panel: 2 × USB 2.0 |
| Hard Disk | SATA: 1 SATA; Capacity: Up to 6TB capacity for each disk |
| Wi-Fi | Frequency band: 2.4 GHz; Antenna structure: 2 x 2MIMO. External antennas. PA and LNA modules are supported.; Transmission speed: 300 Mbps; Transmission standard: IEEE 802.11b/g/n |
| General | Power Supply: 12 VDC; Consumption (without hard disk): ≤ 18 W; Working Temperature: -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF); Working Humidity: 10 % ~ 90 %; Dimensions: 205 × 205 × 45 mm (8.1 × 8.1 × 1.8 in); Weight(without HDD): ≤ 1 kg (2.2 lb) |
