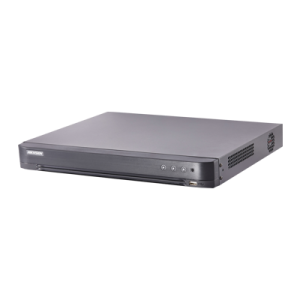

Hikvision DS-7224HQHI-K2 24ch Turbo DVR

Hikvision DS-7224HQHI-K2 24ch Turbo DVR Video/Audio Input

Audio Input:        1-ch

Video Compression:        H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:        24-ch,BNC interface (1.0Vp-p, 75 Ã)connection

Supported camera types:        Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30

Support AHD input: 1080p25, 1080p30, 720p25, 720p30

Support CVI input: 1080p25, 1080p30, 720p25, 720p30

Support CVBS input

Video Input Interface:        BNC (1.0 Vp-p, 75Ã)

Audio Compression:        G.711u

Audio Input Interface:        RCA (2.0 Vp-p, 1 kÃ)

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 KÃ), (using the 1st channel of audio input)

Video/Audio Output

CVBS Output:        1-ch,BNC(1.0Vp-p,75Ã),resolution:PAL:704×576,NTSC:704×480

HDMI/VGA Output:        HDMI: 1-ch,4K(3840Ã2160)/30Hz,2K(2560Ã1440)/60Hz, 1920Ã1080/60Hz, 1280Ã1024/60Hz,1280Ã720/60Hz,1024 Ã768/60Hz

VGA:1-ch,2K(2560Ã1440)/60Hz,1920Ã1080/60Hz,1280Ã1024/60Hz,1280Ã720/60Hz,1024Ã768/60Hz

Recording resolution:        1080p/720p/VGA/WD1/4CIF/CIF

Frame Rate:        Main stream:

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N)

For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

For 1080p and 720p stream access: CIF/QVGA@15fps

For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N)

Video Bit Rate:        32 Kbps ~ 4 Mbps

Stream Type:        Video/Video&Audio

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 kÃ) (using the audio input)

Audio Output:        1-ch RCA(Linear, 1kÃ)

Audio Bit Rate:        64kbps

Dual Stream:        Support

Synchronous Playback:        16-ch

Network management

Remote connections:        128

Network protocols:        TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPÃ, HTTPS, ONVIF

Hikvision DS-7224HQHI-K2 24ch Turbo DVR Hard Disk Driver

Interface Type:        2 SATA Interfaces

Capacity:        Up to 10 TB capacity for each disk

Hikvision DS-7224HQHI-K2 24ch Turbo DVR External Interface

Network Interface:        1; 10M / 100M / 1000M self-adaptive Ethernet interface

USB Interface:        1 USB 2.0 Interface & 1 USB 3.0 Interface

Hikvision DS-7224HQHI-K2 24ch Turbo DVR General

Power Supply:        12 VDC

Consumption:        Ã 18 W

Working Temperature:        -10 oC to +55 oC (14 oF to 131 oF)

Working Humidity:        10% to 90%

Dimensions:        380 Ã 320 Ã 48 mm (15.0 Ã 12.6 Ã 1.9 inch)

Weight:        Ã 2.2 kg (4.9 lb)
