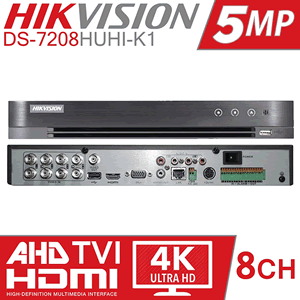

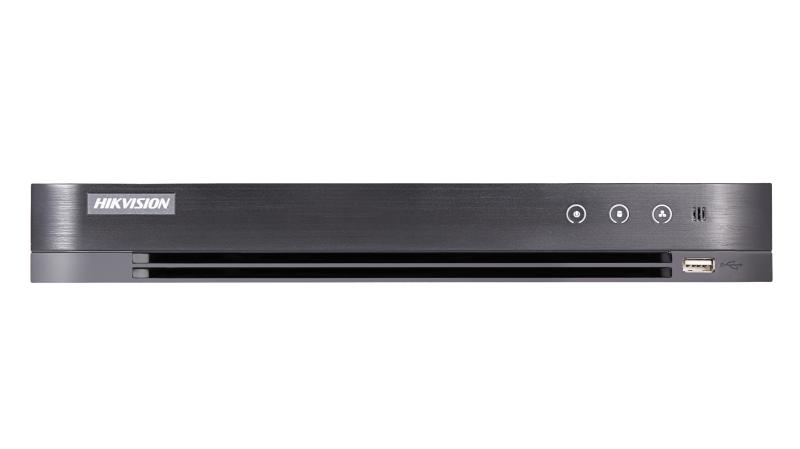

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR Specifications

-Support H.265 Pro+/H.265 Pro/H.265 video compression

-Support HDTVI/AHD/CVI/CVBS/IP video input

-Audio via coaxial cable

-Max. 16 IP cameras input (up to 8 MP)

-Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

-Up to 10 TB capacity per HDD

Video/Audio Input

Audio Input:        4-ch

Video Compression:        H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:        8-ch,BNC interface (1.0Vp-p, 75 Ã), supporting coaxitron connection

Supported camera types:        Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVBS input

Video Input Interface:        BNC (1.0 Vp-p, 75Ã)

Audio Compression:        G.711u

Audio Input Interface:        4-ch, RCA (2.0 Vp-p, 1 KÃ)

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 KÃ), (using the 1st channel of audio input)

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR Video/Audio Output

CVBS Output:        1-ch,BNC(1.0Vp-p,75Ã),resolution:PAL:704×576,NTSC:704×480

HDMI/VGA Output:        VGA: 1-ch, 1920 Ã 1080/60Hz, 1280 Ã 1024/60Hz, 1280 Ã 720/60Hz, 1024 Ã 768/60Hz

HDMI: 1-ch, 4K (3840 Ã 2160)/30Hz, 2K (2560 Ã 1440)/60Hz, 1920 Ã 1080/60Hz, 1280 Ã 1024/60Hz, 1280 Ã 720/60Hz, 1024 Ã 768/60Hz

Recording resolution:        8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF



Frame Rate:        Main stream: When 8 MP Lite mode is not enabled: 8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K1.

When 8 MP Lite mode enabled:

8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

*: 8 MP Lite is only available for DS-7204HUHI-K1.

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:        32 Kbps-10 Mbps

Stream Type:        Video/Video&Audio

Two-way Audio:        1-ch, RCA (2.0 Vp-p, 1 kÃ) (using the audio input)

Audio Output:        1-ch RCA(Linear, 1kÃ)

Audio Bit Rate:        64kbps

Dual Stream:        Support

Playback Resolution:        8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Synchronous Playback:        8-ch

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR Network management

Remote connections:        64

Network protocols:        TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

Hard Disk Driver

Interface Type:        1 SATA Interface

Capacity:        Up to 10 TB capacity for each disk

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR External Interface

Network Interface:        1; 10M / 100M / 1000M self-adaptive Ethernet interface

USB Interface:        1 USB 2.0 Interface & 1 USB 3.0 Interface

Serial Interface:        1; standard RS-485 serial interface, half-duplex

Alarm Input:        8-ch

Alarm Output:        4-ch

This Hikvision 8 channel Hybrid DVR offers True High Definition and supports HD-TVI, IPC, AHD and analogue cameras with adaptive access. It includes 5MP recording on all 8 channels, H.265 video compression technology, and 1 CH SATA interface that can support a 8TB HDD.

This CCTV Recorder provides 8 channels of video input, and HDMI/VGA video output (at up to 3840 × 2160).

This CCTV high definition 5MP HYBRID 1080p Dome camera, part of our branded range, is perfect for customers striving professional level high quality cameras.

This security camera provides 3.6 mm board lens with an amazing Full HD 1080p colour, quality and definition.

This CCTV model is waterproof and suitable for outdoor locations (IP66) with clear 20 meter Night Vision.

Hikvision DS-7208HUHI-K1 5MP Hybrid 8Ch Turbo DVR General

Power Supply:        12 VDC

Consumption:        Ã 20W(without hard disks)

Working Temperature:        -10 oC to +55 oC (14 oF to 131 oF)

Working Humidity:        10% to 90%

Dimensions:        315 Ã 242 Ã 45 mm (12.4 Ã 9.5 Ã 1.8 inch)

Weight:        Ã 2 kg (4.4 lb)
