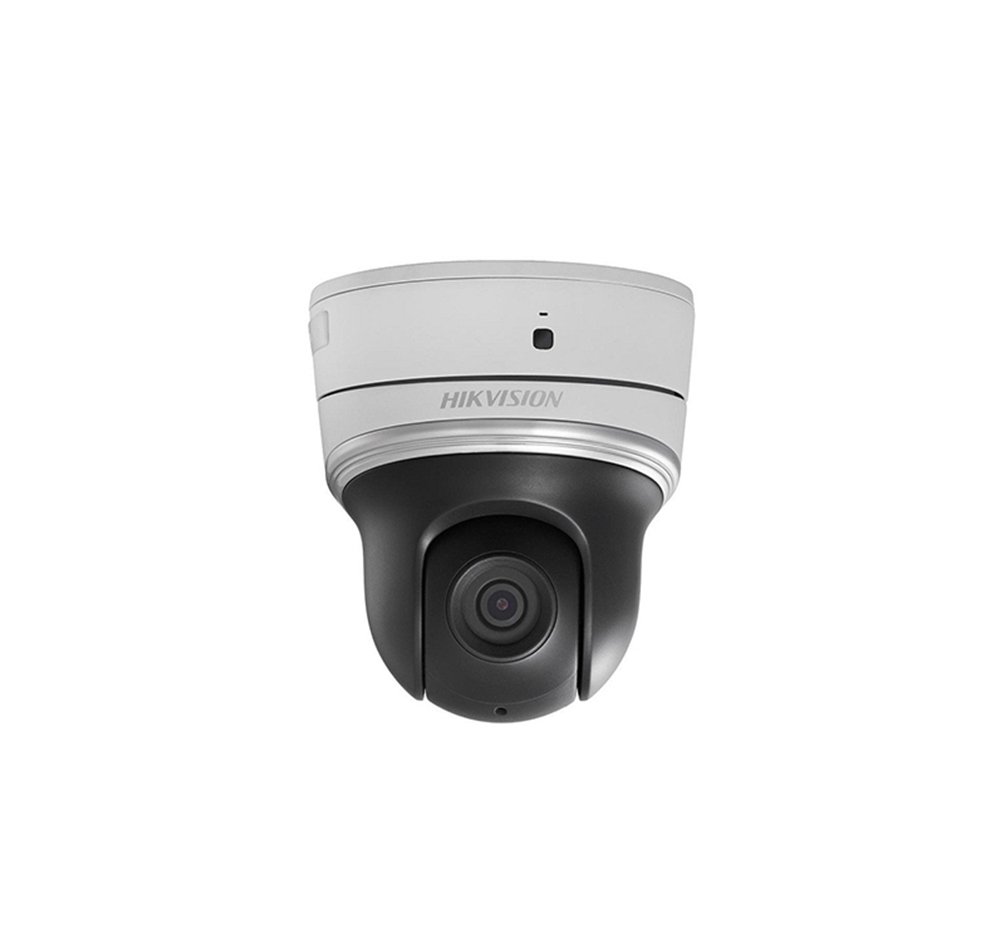

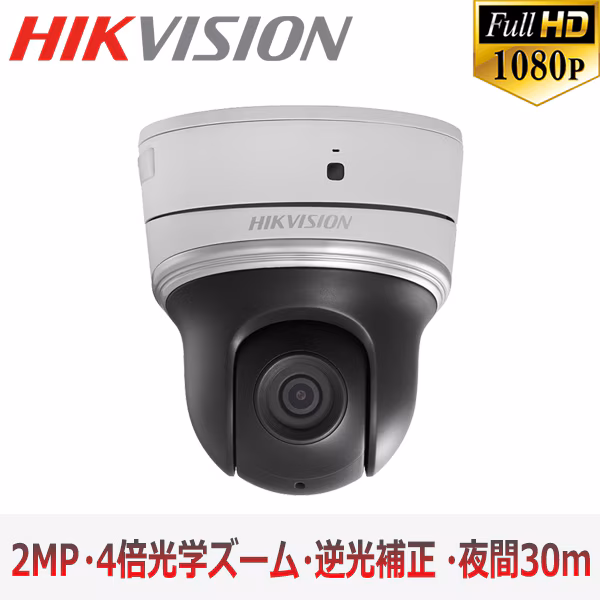

Hikvision DS-2DE2204IW-DE3/W 2MP PTZ Camera
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.005 Lux @(F2.0, AGC ON) 0 Lux with IR |
|
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| WDR: | DWDR | |
| Shutter Time: | 1/1 to 1/10,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16× | |
| Privacy Masking: | 8 privacy masks programmable | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 2.8 to 12mm, 4× | |
| Zoom Speed: | Approx. 2s (optical lens, wide-tele) | |
| Angle of View: | 100° to 25° (wide-tele) | |
| Minimum Working Distance: | 10 to 1500mm (wide-tele) | |
| Aperture Range: | F1.8 to F2.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | Pan: 0~350° | |
| Pan Speed: | Configurable, from 0.1°/s to 60°/s Preset Speed: 60°/s |
|
| Tilt Range: | Tilt: 0°~90° | |
| Tilt Speed: | Configurable, from 0.1°/s to 50°/s Preset Speed: 50°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 20m | |
| IR irradiation angle: | Adjustable by zoom | |
| Hikvision DS-2DE2204IW-DE3/W 2MP PTZ Camera Alarm | ||
|---|---|---|
| Alarm Input: | 1 | |
| Alarm Actions: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage | |
| Input & Output | ||
|---|---|---|
| Audio Input: | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% | |
| Audio Output: | 1 channel audio output, linear level | |
| Hikvision DS-2DE2204IW-DE3/W 2MP PTZ Camera Network | ||
|---|---|---|
| Wi-Fi: | Support | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) | |
| Third Stream: | 50Hz:25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz:30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120) |
|
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Audio Mode: | OFF/Audio input/Audio output | |
| Hikvision DS-2DE2204IW-DE3/W 2MP PTZ Camera General | ||
|---|---|---|
| Power Supply: | 12V DC & PoE((802.3af, class3) | |
| Power Consumption: | Max.: 9W | |
| Working Temperature/Humidity: | -10°C to 50°C (-14°F to 122°F) | |
| Protection Level: | TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Material: | ADC12 PC PC+ABS SUS304 POM | |
| Dimensions: | Φ 125 mm × 136.7 mm (Φ 4.92″ × 5.38″) | |
| Weight (approx.): | Approx. 0.65kg (1.4lb) | |
