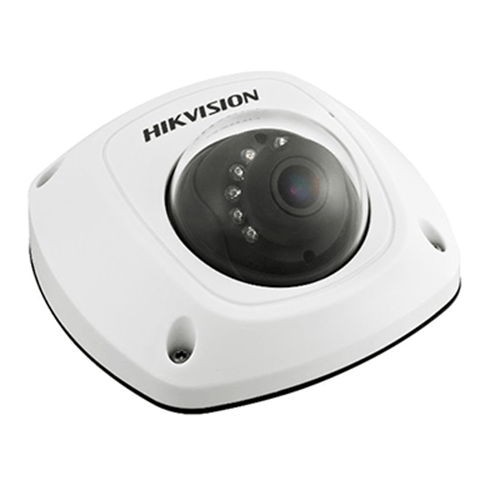

Hikvision DS-2CS54D7T-IRS Dome Mic Camera

Hikvision DS-2CS54D7T-IRS Dome Mic Camera
Image Sensor 2 megapixel progressive CMOS sensor
Signal System PAL/NTSC
Effective Pixels 1928 (H) ×1088 (V)
Min. illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 s (1/30 s) to 1/50,000 s
Lens 3.6 mm (2.8 mm, and 6 mm are selectable)

Field of View 100.5°(2.8 mm), 80.5°(3.6 mm), 53°(6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: -30°to 30°, Tilt: 0°to 80°, Rotate: -180°to 180°
Synchronization Internal Synchronization
Ture WDR > 120 dB
Video Frame Rate 1080p@25fps, 1080p@30fps
S/N Ratio > 62 dB

Hikvision DS-2CS54D7T-IRS Dome Mic Camera Interface
Video Out 1 BNC
Audio In Built-in Microphone
Audio Out 1 RCA
Menu
AGC Low/Middle/High/OFF
D/N Mode Color/BW/SMART
White Balance Manual/Auto
BLC Support
Language Chinese/English
Functions Brightness, Contrast, Saturation, Sharpness, Digital noise reduction, Mirror

Hikvision DS-2CS54D7T-IRS Dome Mic Camera General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (no condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 5 W
Protection Level IK 07
IR Range 10 m to 20 m
Dimensions 97 mm × 99.5 mm × 46.6 mm (3.82″ × 3.92″ × 1.83″)
Weight Approx. 300 g (0.66 lb.)
