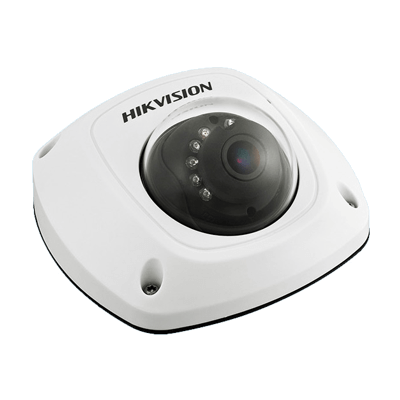

Hikvision DS-2CS54A1P(N)-IRS 2MP Dome HD Camera
Description
Camera | ||
---|---|---|
Image Sensor: | 1/3” DIS | |
Signal System: | PAL/NTSC | |
Effective Pixels: | 976(H)×496(V) | |
Shutter Time: | 1/50(1/60)s to 1/10,000s | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: 0 ± 30°, Tilt: 0 – 75°, Rotation: 0 – 360° | |
Day& Night: | IR cut filter with auto switch | |
Horizontal Resolution: | 700 TVL | |
Synchronization: | Internal Synchronization | |
Video Output: | 1Vp-p Composite Output (75Ω/BNC) | |
S/N Ratio: | More than 62 dB |
Menu | ||
---|---|---|
Auto Gain: | Low/Middle/High/Off | |
D/N Mode: | Auto/ Color/ BW/ Smart | |
Language: | English/Chinese | |
Function: | Brightness, Contrast, Sharpness, Saturation, DNR, Mirror |
Interface | ||
---|---|---|
Audio In: | Built-in Microphone | |
Audio Out: | 1-ch BNC audio interface (line level, 1kΩ) |
General | ||
---|---|---|
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 V DC±10% | |
Weather Proof: | IP65 | |
IR Range: | Up to 20m | |
Dimension: | 97 × 46.6 × 99.5mm (3.82” × 1.83” × 3.92”) | |
Weight: | 300 g(0.66 lbs) |
