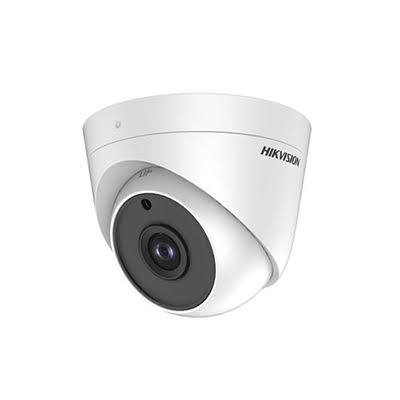

Hikvision DS-2CE76D3T-ITPF 2MP TURBO HD CAMERA

Hikvision DS-2CE76D3T-ITPF 2MP TURBO HD CAMERA

The DS-2CE76D3T-ITPF is Hikvision’s 2MP EXIR Camera with smart, extra infrared technology for IR vision of up to 30M. It also has embedded in it a DNR (Digital Noise Removal) function that helps to eradicate any interference in the video signal.  Other features of this camera (DS-2CE76D3T-ITPF) include:

Camera

Image Sensor:        2.0 megapixel progressive scan CMOS

Signal System:        PAL/NTSC

Effective Pixels:        1920 (H) × 1080 (V)

Min. Illumination:        Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time:        1/25(1/30) s to 1/50,000 s

Lens:        2.8 mm, 3.6 mm, 6 mm fixed lens

Lens Mount:        M12

Adjustment Range:        Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Day& Night:        IR cut filter

Video Frame Rate:        PAL: 1080p@25fps

NTSC: 1080p@30fps

HD Video Output:        1 Analog HD output

Synchronization:        Internal Synchronization

BLC:        Support

Up the Coax:        Support

Menu

3D DNR (Digital Noise Reduction):        Level 1 to 9

D/N Mode:        Auto/Color/BW (Black and White)

BLC:        Support

AGC:        Low/middle/high

Language:        English

Function:        Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Out:        1 HD analog output

Hikvision DS-2CE76D3T-ITPF 2MP TURBO HD CAMERA General

Material:        Plastic

Operating Conditions:        -40 °C – 60 °C (-40 °F – 140 °F)

Humidity 90% or less (non-condensing)

Power Supply:        12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.

Power Consumption:        Max. 4.6 W

IR Range:        Up to 30m

Dimension:        Φ 85.8 mm × 70 mm (Φ 3.38″ × 2.76″)

Weight:        Approx. 127 g (0.28 lb.)
