- Camera
- ModelDS-2CE76D0T-EXIPF

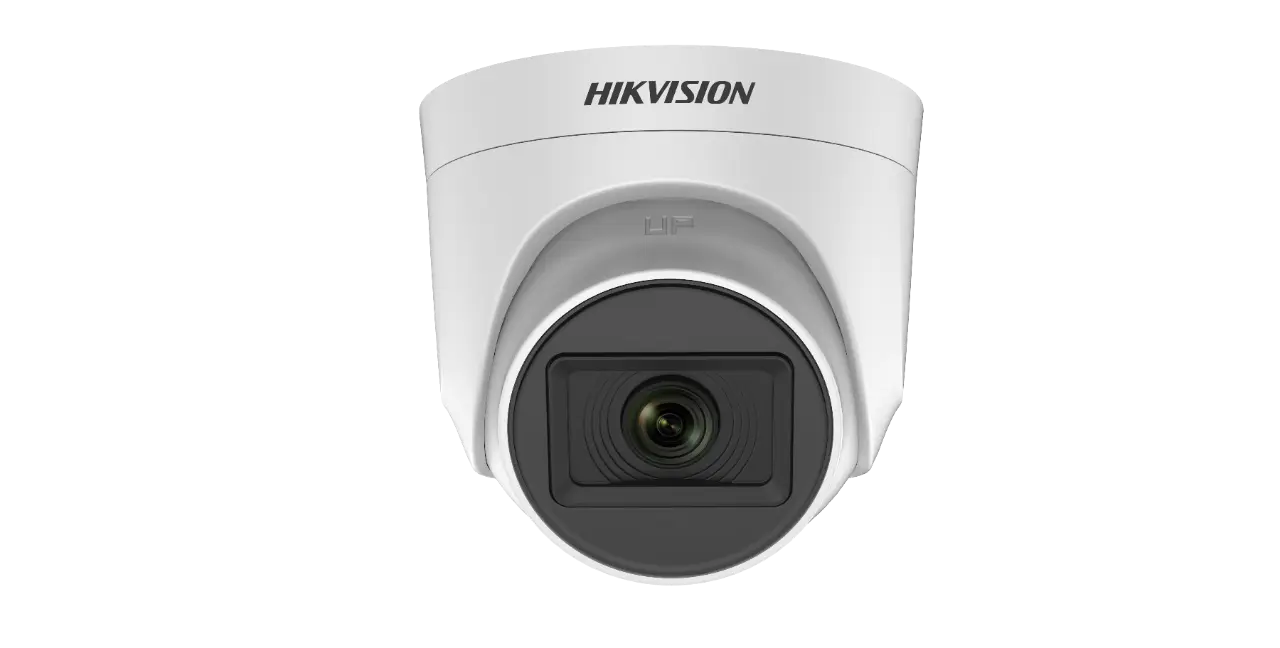

- Product Name2MP Indoor EXIR Fixed Turret Camera
- Image Sensor2 MP CMOS
- Signal SystemPAL/NTSC
- Resolution1920 (H) × 1080 (V)
- Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
- Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens2.8 mm, 3.6 mm Fixed Lens
- Field Of View
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
- Lens MountM12
- Day & NightIR Cut Filter
- WDR (Wide Dynamic Range)Digital WDR
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Image
- Image ModeSTD/HIGH-SAT
- AGCYes
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceAuto
- AE (Auto Exposure) ModeBLC;Global;DWDR
- Noise Reduction2D DNR
- LanguageEnglish
- FunctionSharpness;Smart IR;Mirror;Brightness
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply12 VDC ± 25%
- ConsumptionMax. 3.3 W
- MaterialPlastic
- IR RangeUp to 20 m
- CommunicationHIKVISION-C
- DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
- WeightApprox. 195g (0.43 lb.)
