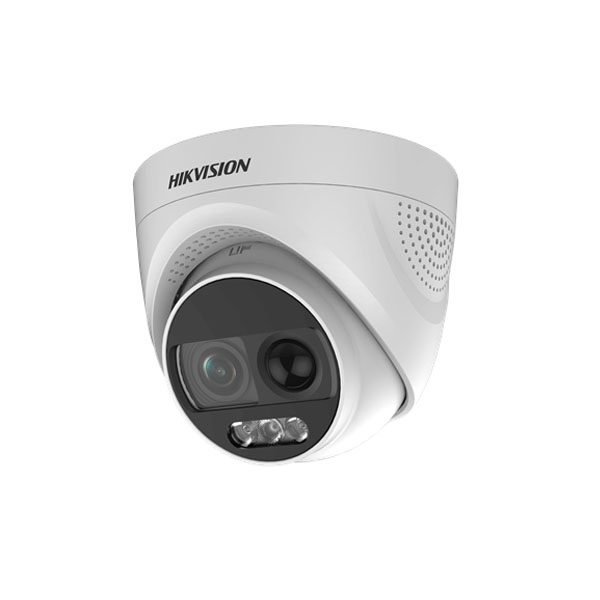

Hikvision DS-2CE72D0T-PIRXF 2MP Dome Turret Camera

Hikvision DS-2CE72DOT-PIRXF 2MP Dome Turret camera integrates three essentials components i.e:

• An effective full 1080P(2MP) camera
• A built-in siren
• Flashlight to indicate activity  or movement in a pre-marked, highlighted region

The Camera also has some multi-device notification system in both the front and back end. The front-end alarm warns and deters intruders, while the back-end will push notifications to security personnel. Alarm information will also be shown on mobile devices.

Hikvision DS-2CE72D0T-PIRXF 2MP Dome Turret Camera Specifications

Image Sensor :2MP CMOS

Signal System :PAL/NTSC

Frame Rate :    TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@25fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC

Resolution1920 (H) × 1080 (V)

Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens2.8 mm, 3.6 mm, 6 mm fixed lens

Horizontal Field Of View2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 81°, vertical FOV: 43°, diagonal FOV: 96° 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°

Lens MountM12

Strobe Light AlarmYes

Day & NightICR

WDR (Wide Dynamic Range)Digital WDR

Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate 0 to 360°

Hikvision DS-2CE72D0T-PIRXF 2MP Dome Turret Camera Menu

Image Mode :STD/HIGH-SAT

AGC: Support

Day/Night Mode :Auto/Color/BW (Black and White)

White Balance :ATW/MANUAL

HLC :Yes

BLC (Backlight Compensation):Yes

Language :English

Functions:Brightness, Sharpness, Mirror, Smart IR

Hikvision DS-2CE72D0T-PIRXF 2MP Dome Turret Camera Interface

Video Output :Switchable TVI/AHD/CVI/CVBS

General Camera Information:

Operating Condition :-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

Power Supply :12 VDC ± 25% (You are recommended to use one power adapter to supply the power for one camera).

Power Consumption Max.: 5.3 W

Protection: Level IP67

Material Enclosure: Plastic Main Body: Metal

IR Range :Up to 20 m

Communication :HIKVISION-C

Dimensions :109.82 mm × 93.66 mm (Φ 4.32″ × 3.7″)

WeightApprox. : 388 g (0.86 lb.)
