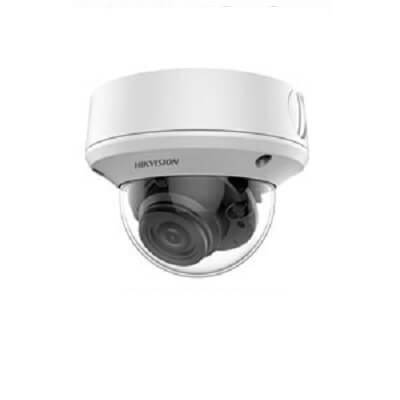

Hikvision DS-2CE5AH0T-VPIT3ZF 5MP VARIFOCAL
Camera | ||
---|---|---|
Image Sensor: | 5MP CMOS Image Sensor | |
Effective Pixels: | 2560 (H) × 1944 (V) | |
Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
Lens Mount: | φ14 | |
Adjustment Range: | Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355°
|
|
Day& Night: | IR cut filter with auto switch | |
Video Frame Rate: | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
HD Video Output: | 1 Analog HD output | |
Synchronization: | Internal Synchronization |
Hikvision DS-2CE5AH0T-VPIT3ZF 5MP VARIFOCAL General | ||
---|---|---|
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 VDC±15%, 24 VAC±15% | |
Impact Protection: | IK10. | |
Weather Proof: | IP67 | |
IR Range: | Up to 40m | |
Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
Dimension: | Ø 145 mm × 111.3 mm ( Ø 5.70″ × 4.37″) | |
Weight: | DS-2CE5AH0T-VPIT3ZF: Approx. 815 g (1.80 lb.) DS-2CE5AH0T-AVPIT3ZF: Approx. 860 g (1.90 lb.) |
