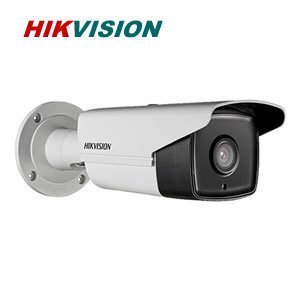

Hikvision DS-2CD2T63G 6MP Network Camera
1/2.9″ Progressive Scan CMOS
• 3072 × 2048@20fps
• 2.8/4/6/8mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• 120dB WDR
• 2 Behavior analyses
• BLC/3D DNR/ROI/HLC
• IP67
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
Camera
Image Sensor: 1/2.9″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 256Kbps~16Mbps
Triple Streams: Yes
Hikvision DS-2CD2T63G 6MP Network Camera Image
Max. Image Resolution: 3072 x 2048
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 ×
720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 ×
720)
Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping: No
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Day/Night/Auto/Schedule
Hikvision DS-2CD2T63G 6MP Network Camera Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Hikvision DS-2CD2T63G 6MP Network Camera Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Detection/Recognition: Face Detection
Hikvision DS-2CD2T63G 6MP Network Camera General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: I5:
12 VDC, 0.6 A, max. 7W
PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 8.5W
I8:
12 VDC, 0.9 A, max. 10W
PoE: (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12W
Weather Proof: IP67
IR Range: -I5: up to 50 m; -I8: up to 80 m
Dimensions: Camera: Φ 104.8 × 299.7 mm (Φ 4.1″ × 11.8″)
Package: 386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
Weight: Camera: 1200 g (2.7 lb.)
