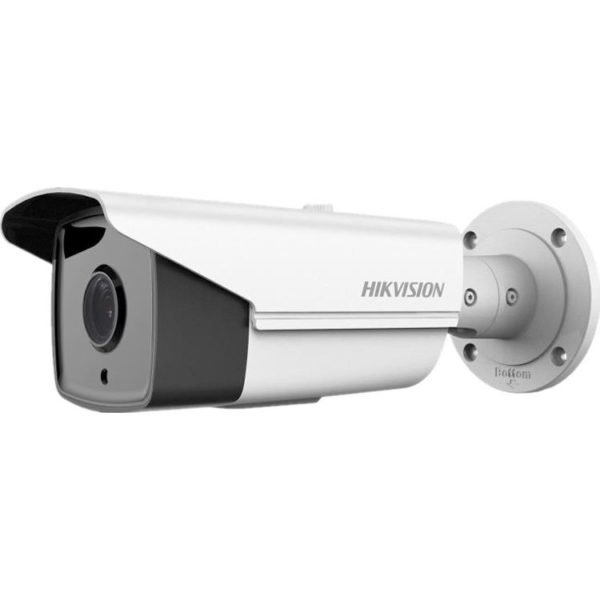

HIKVISION DS-2CD2T42WD-I5 4MP BULLET CAMERA
| Camera | ||
|---|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F2.0,AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s ~ 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 4,6,12,16mm) @F2.0 angle of view: 83°(4mm), 55.4°(6mm), 24.7°(12mm), 19.1°(16mm) | |
| Lens Mount: | M12
|
|
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG/H.264+ | |
| H.264 code profile: | Main Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
|
| Sub Stream: | 50Hz: 25fps(352×288),25fps(640×360) 60Hz: 30fps(352×240),30fps(640×360) |
|
| Image Enhancement: | BLC/3D DNR/ROI | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| HIKVISION DS-2CD2T42WD-I5 4MP BULLET CAMERA Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port | |
| HIKVISION DS-2CD2T42WD-I5 4MP BULLET CAMERA General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | I3: Max. 6W; I5: Max. 7.5W; I8: Max. 10.5W | |
| Weather Proof: | IP67 | |
| IR Range: | I3: 30 meters; I5: 50 meters; I8: 80 meters | |
| Dimensions: | 299.71 × 86.48 × 85.11(11.8’’ × 3.4’’ × 3.35’’) | |
| Weight: | 1200g (2.65 lbs) | |
