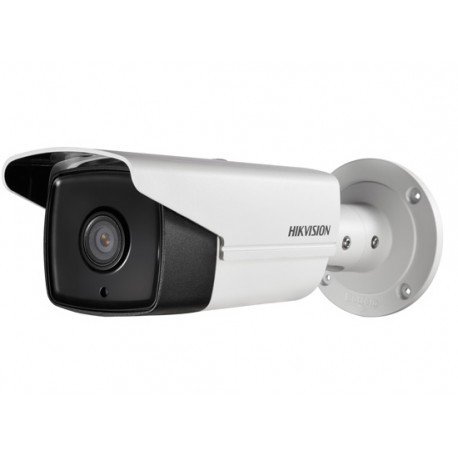

| Hikvision DS-2CD2T22-I8 2MP EXIR Bullet Camera | ||
|---|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.014Lux @ (F1.4, AGC ON) ,0 Lux with IR |
|
| Shutter time: | 1/3 s to 1/100,000 s
|
|
| Lens: | 4mm@ F2.0 (6mm, 16mm optional) Angle of view: 85° |
|
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| H.264 code profile: | BaseLine Profile / Main Profile | |
| Video bit rate: | 32Kbps~12Mbps | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50 Hz: 25fps(1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 x 720) 60 Hz: 25fps(1920 × 1080), 30 fps (1280 × 960), 30 fps (1280 x 720) |
|
| BLC: | Yes, zone configurable | |
| ROI: | Support | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
|
| System Compatibility: | ONVIF, PSIA, CGI, ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Hikvision DS-2CD2T22-I8 2MP EXIR Bullet Camera General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | -I3: max. 5.5W -I5: max. 7W -I8: max 10W |
|
| Weather Proof: | IP66 | |
| IR Range: | -I3: 30 meters -I5: 50 meters -I8: 80 meters |
|
| Dimensions: | Φ105mm×300mm | |
| Weight: | 1200g | |
