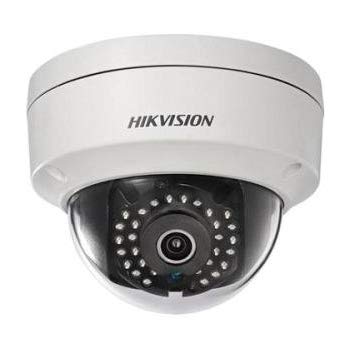

| Hikvision DS-2CD2122FWD-I 2MP Network IP Dome Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 114°(2.8mm), 88°(4mm), 55°(6mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0°~355°, Tilt: 0°~75°, Rotation: 0°~355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG/H.264+ | |
| H.264 code profile: | Main Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz:Main stream:25fps(1920×1080),25fps(1280×960),25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360)
60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720) Sub stream: 30fps(352×240),30fps(640×360) |
|
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| BLC: | Yes, zone configurable | |
| ROI: | Support | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Hikvision DS-2CD2122FWD-I 2MP Network IP Dome Camera Interface | ||
|---|---|---|
| Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1x alarm I/O *only for –S models | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Hikvision DS-2CD2122FWD-I 2MP Network IP Dome Camera Wi-Fi Specification (-W) | ||
|---|---|---|
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth: | 20/40MHz Support | |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
|
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
|
| Wireless Range: | 50m(depend on environment) | |
| Hikvision DS-2CD2122FWD-I 2MP Network IP Dome Camera General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | Max. 5W | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ111 × 82 (4.4” × 3.2”) | |
| Weight: | 500g (1.1lbs) | |
