HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Features
● 1/2.7″ Progressive Scan CMOS
● 1920 × 1080@30fps
● 2.8/4 mm fixed lens
● Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
● H.265+/H.265/H.264+/H.264
● BLC/3D DNR/ROI
● IR range: Up to 30 m
● 3-Axis adjustment
● IP66
Specifications
Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8/4 mm
Aperture F2.0
FOV
2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio(-U)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, exception (illegal login)
Linkage Method Upload to FTP, notify surveillance center, send email, trigger capture
Region of Interest 1 fixed region for main stream and sub-stream

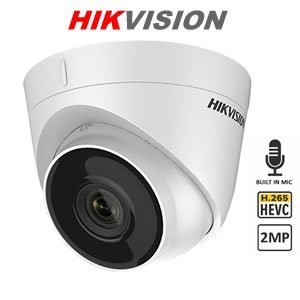

HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Image
Image Enhancement BLC, 3D DNR
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance
adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Interface
Communication Interface 1 RJ45 self-adaptive Ethernet port
Audio 1 audio input (built-in microphone), mono sound
Interface Style Pigtail style interface
HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera General
Firmware Version 5.5.83
General Function
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Reset Reset via web browser and client software
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
Power Consumption and Current 12 VDC, 0.4 A, max. 5 W; PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W
Material Camera body: metal, bottom base : plastic
Dimensions
Camera: 94.4 × Φ110 mm (3.7″ × Φ4.3″)
With package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Weight
Camera: Approx. 354 g (0.8 lb.)
With package: Approx. 681 g (1.5 lb.)
HIKVISION DS-2CD1323GO-IU 2MP IR Network Camera Approval
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:
2015, KN 35: 2015
Safety
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am
1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection Ingress protection: IP66 (IEC 60529-2013)
