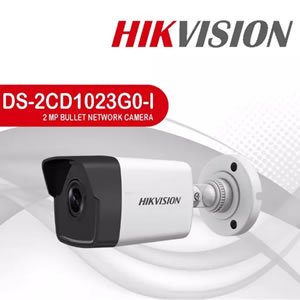

Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P


Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P

  • Resolution: 2 MP (1920 x 1080)
  • 2.8 mm / 103° lens
  • IR illuminator with range up to 30 m (EXIR 2.0)
  • H.265+/H.265/H.264+/H.264/MJPEG video compression
  • 3D-DNR, DWDR, BLC video processing functions
  • Access via Hik-Connect app
  • Region of interest (ROI)
  • Mechanically switching IR filter
  • IP67 rating

35,000.00

Compare

Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P Key Features

Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P Camera
Image Sensor: 1/2.7″ Progressive Scan CMOS
Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100, 000 s
Slow shutter: Yes
Lens: 2.8 mm, 4 mm, 6 mm
Lens Mount: M12
Adjustment Range: 2.8 mm, horizontal FOV 103°, vertical FOV 59°, diagonal FOV 118°
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Day& Night: IR Cut Filter
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR



Compression Standard
H.265 Type: Main Profile
Video Compression: H.265/H.264/MJPEG
H.264 code profile: Baseline Profile/Main Profile/High Profile
Video bit rate: 32Kbps~8Mbps



Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Auto, scheduled



Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P Network
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port



Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P General
Operation Condition: -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Weather Proof: IP67
Dimensions: Camera: Ø 70 mm × 172.7mm ( 2.7″ × 6.8″)
With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
Weight: Camera: Approx. 280 g (0.62 lb.)
With package: Approx. 530 g (1.17 lb.)

1/2.8″ progressive scan CMOS
3D DNR (Digital Noise Reduction)
1920 Ã 1080@30fps
Up to 30 m IR range
2.8 mm/4 mm/6 mm fixed lens
PoE (Power over Ethernet)
H.265+, H.265, H.264+, H.264  IP67
Dual stream
Digital WDR (Wide Dynamic Range)
Built-in Microphone

Hikvision DS-2CD1023G0-IU 2MP IR Network Audio Camera 1080P Specification

Brand    Hikvision
Model    Hikvision DS-2CD1023G0-IU
Type    IP Bullet Camera
Image sensor    1/2.8Ã Progressive Scan CMOS
Lens    4mm
Viewing Angle    83degree (Horizontal)
Video format    H.264, MJEPG
Resolution    1920 x 1080
Protocols    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Dimensions    147.5 x 78.2 x 92.9mm
Others    Dual stream, Up to 2.0-megapixel high resolution, IP67 weather-proof protection, PoE optional, Weight: 350gm, 1 RJ45 10M/100M self-adaptive Ethernet port, Day &Night: IR cut filter with auto switch, Lens Mount: M12, Shutter Speed: 1/3 s to 1/100,000
