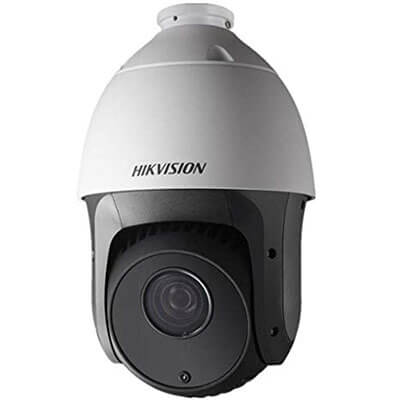

Hikvision DS-2AE4225TI-D 2MP Turbo PTZ
| Camera | ||
|---|---|---|
| Image Sensor: | 1 / 2.8 “Progressive Scan CMOS | |
| Effective Pixels: | 1920 (H) x1080 (V) | |
| Signal System: | PAL / NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @ (F1.6, AGC ON) B / W: 0.001 Lux @ (F1.6, AGC ON) 0 lux with IR |
|
| AGC: | Auto / Manual
|
|
| BLC: | ON / OFF | |
| WDR: | DWDR | |
| Anti-shake: | On / Off | |
| Shutter Time: | PAL: 1-1 / 10,000s NTSC: 1-1 / 10,000s |
|
| Day & Night: | ICR | |
| Digital Zoom: | 16x | |
| Privacy Masking: | 8 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 4.8 mm to 120 mm, 25 × Optical | |
| Zoom Speed: | Approx. 3.2 s (optical, wide to tele) | |
| Angle of View: | 57.6 ° to 2.5 ° (wide-tele) | |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) | |
| Aperture Range: | F 1.6 to F 3.5 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360 ° endless | |
| Pan Speed: | Pan manual speed: 0.1 ° to 80 ° / s Pan preset speed: 80 ° / s |
|
| Tilt Range: | -15 ° -90 ° (Auto Flip) | |
| Tilt Speed: | Tilt manual speed: 0.1 ° to 80 ° / s Tilt preset speed: 80 ° / s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to multiple zoom | |
| Number of Preset: | 256 | |
| Patrol: | 10 patrols, up to 32 presets per patrol | |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes | |
| Power loss recovery: | Support | |
| PTZ Position Display: | ON / OFF | |
| Infrared | ||
|---|---|---|
| IR irradiation distance: | 100m | |
| IR irradiation angle: | Adjustable by zoom | |
| Input & Output | ||
|---|---|---|
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) | |
| Hikvision DS-2AE4225TI-D 2MP Turbo PTZ general | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Menu Language: | English | |
| Power Supply: | 12V DC | |
| Power Consumption: | Max.20 W (IR: 7 W) | |
| Working Temperature / Humidity: | -30 ° C-65 ° C (-22 ° F-149 ° F) 90% or less |
|
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
