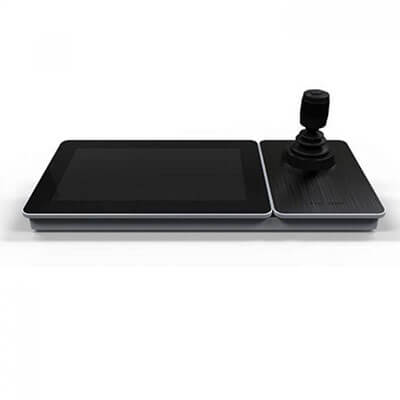

Hikvision DS-1600KI Network touchscreen Keyboard with joystick


Hikvision DS-1600KI Network touchscreen Keyboard with joystick

10.1″ capacitive touchscreen

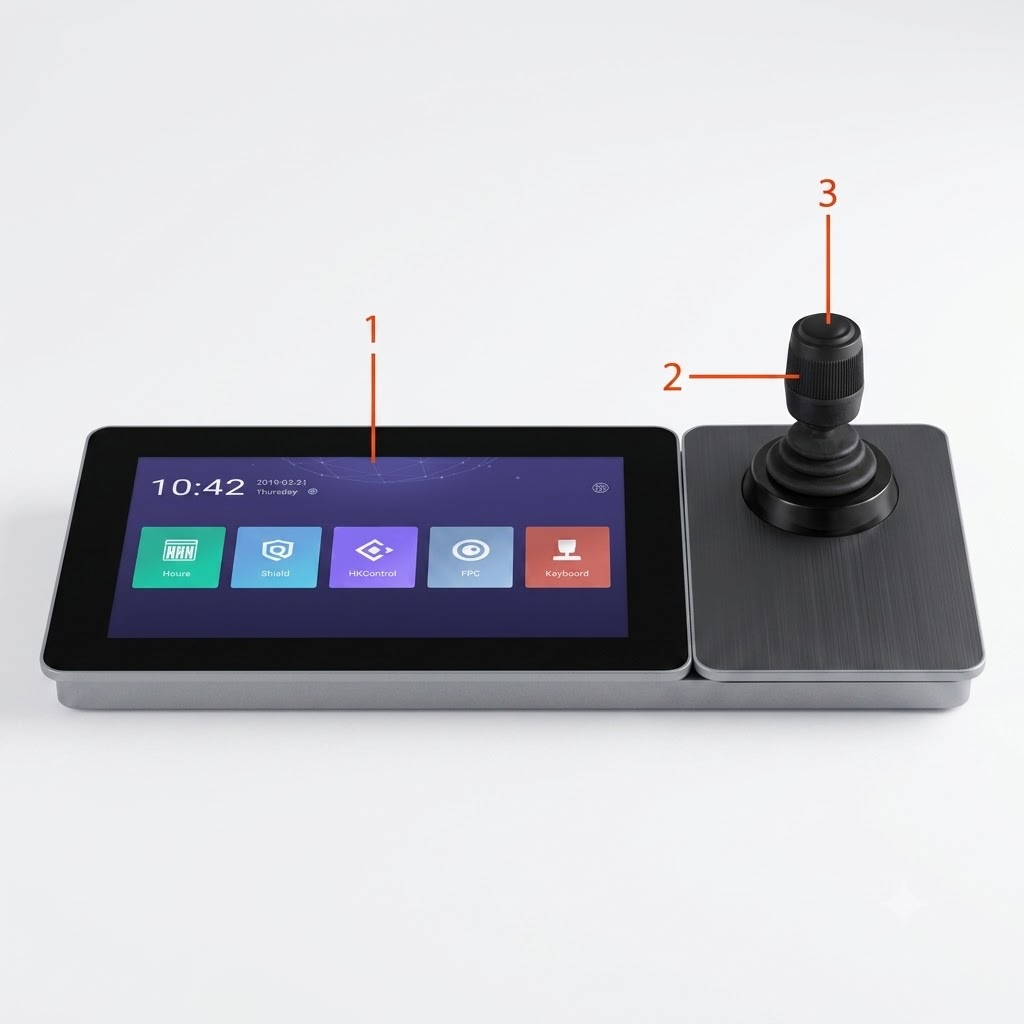

Detachable design of the touchscreen and joystick

Wired and WiFi network connection

POE power supply

Capable of decoding 2-ch at 1080P decoding; up to 16-division window display

Live view on touch panel

DVI and HDMI output to monitor

Controllable of 2000 devices

285,240.00

Compare
System
Operating System: Android 4.4
TFT LCD Screen: 10.1″ TFT LCD touchscreen
Resolution: 1024 × 600
Joystick: 4-axis joystick
Local Decoding: Local live view at 1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display



Hikvision DS-1600KI Network touchscreen Keyboard with joystick External Interfaces
Two-way Audio Input: 1-ch, 3.5mm connector
(2.0Vp-p, >1kΩ)
Audio Output: 1-ch, 3.5mm connector (2.0 Vp-p, 600 Ω)
Network Interface: 10M/100M/1000M Adaptive Ethernet port
WiFi: Supported
USB Interface: USB 2.0 × 2
Video Interface: HDMI, DVI



Hikvision DS-1600KI Network touchscreen Keyboard with joystick General
Power Supply: 12V DC /POE
Consumption: ≤15W
Working temperature: -10°C –+55°C
Working humidity: 10%–90%
Dimensions (W × D × H): 404 × 180 × 163 mm
Weight: 1.7 Kg

10.1″ capacitive touchscreen

Detachable design of the touchscreen and joystick

Wired and WiFi network connection

POE power supply

Capable of decoding 2-ch at 1080P decoding; up to 16-division window display

Live view on touch panel

DVI and HDMI output to monitor

Controllable of 2000 devices

Access to Hikvision products including DVR, DVS, NVR, network camera, speed dome, etc.

Control of MVC and decoders for video decoding and output on video wall

PTZ control, setting and calling preset, patrol and pattern

Support upgrade and configuration files import/export by USB flash disk

Support recording and picture capturing; saving files in USB flash disk or uploading to FTP server

Two-level user authority and up to 16 user accounts are configurable: one admin and 15 operators
