EZ-IPC-T1B40P-0280B

Availability:

Available on backorder

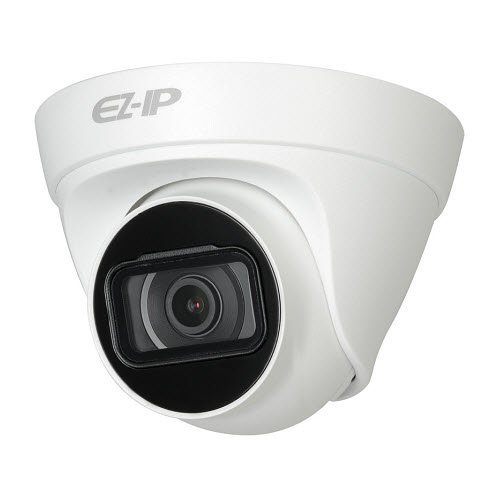

EZ-IPC-T1B40P-0280B
IP camera with efficient H. 264 / H. 265 image compression algorithm
for clear and smooth video streaming at maximal resolution of 1080p.
PoE powering possibility, compatible with the 802.3af standard makes
the device more universal and easier to install.
· 1/3” 4Megapixel progressive CMOS
· H.265+ & H.265 dual-stream encoding
· 20fps@4M(2560×1440) &25/30fps@3M(2304×1296)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8 mm fixed lens (3.6mm optional)
· Max IR LEDs Length 30m
· IP67, Po
EZ-IPC-T1B40P-0280B Technical Specification
EZ-IPC-T1B40P-0280B Camera
Image Sensor 1/3” 4Megapixel progresive CMOS
Effective Pixels 2560(H)x1440(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1

IP CAMERA IPCT1B400280B EZ-IP – 4 Mpx 2.8 mm DAHUA.
Standard: TCP/IP
Scanning system: Progressive
Matrix size: 4 Mpx

29,500.00

Available on backorder

Compare

EZ-IPC-T1B40P-0280B

· 1/3” 4Megapixel progressive CMOS
· H.265+ & H.265 dual-stream encoding
· 20fps@4M(2560×1440) &25/30fps@3M(2304×1296)
· DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
· Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
· 2.8 mm fixed lens (3.6mm optional)
· Max IR LEDs Length 30m
· IP67, Po



EZ-IPC-T1B40P-0280B

System Overview
ALPS 2.0 is perfect for small to medium size applications like home/
residential security, small retail shops, and other typical SMB
applications. It offers a perfect alternative to migrate from analog to an
IP system with its easy to use nature and cost effectiveness.
ALPS 2.0 is fully in line with Dahua’s quality. Stable and reliable
components are utilized and Various tests such as anti-vibration, water
resistance, and aging tests are performed to ensure Dahua quality
standards.

Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.
True Day/Night
EZ-IPC-T1B40P-0280B



A day/night mechanical IR cut filter makes this camera ideal for
applications with fluctuating lighting conditions, delivering color images
during the day and automatically switching to monochrome as the scene
darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the
operator to monitor specific areas of a scene while still maintaining
overall situational awareness of less important areas

Smart IR
With IR illumination, detailed images can be captured in low light or
total darkness. The camera’s Smart IR technology adjusts to the intensity
of camera’s infrared LEDs to compensate for the distance of an object.
Smart IR technology prevents IR LEDS from whiting out images as they
come closer to the camera. The camera’s integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).

EZ-IPC-T1B40P-0280B Image flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera’s image to be rotated in 90° increments for
better video optimization.
Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -20° C to +50° C (-4° F to +122° F) with 95%
humidity.

Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 2KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer



EZ-IPC-T1B40P-0280B Technical Specification
Camera
Image Sensor 1/3” 4Megapixel progresive CMOS
Effective Pixels 2560(H)x1440(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)
0.5Lux/F2.0(Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1

Lens
Lens Type Fixed
EZ-IPC-T1B40P-0280B Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:101°/80°, V:54°/44°
Focus Control Fixed
Close Focus Distance 0.8m(2.63ft)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm 56m(184ft) 22.4m(73.5ft) 11.2m(36.7ft) 5.6m(18.4ft)
3.6 mm 80m(262.5ft) 32m(105ft) 16m(52.5ft) 8m(26.3ft)
PTZ

EZ-IPC-T1B40P-0280B Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering , Network disconnection
, Scene change, IP address conflict, Illegal Access,Storage
anomaly
Video
Compression H.265/H.264/H.264B/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams

Resolution
4M(2560×1440)/3M(2304×1296)/1080P(1920×1080)/7
20P(1280×720)/VGA(640×480)/D1(704×576/704×480)/
CIF(352×288/352×240)
Frame Rate
Main Stream: 4M(1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32K~6144K

H.265: 12K~ 6144K
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization

(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;T
LS;SSH

Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage)
Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari

Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
Certifications
Certifications CE: (EN 60950:2000)
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <
