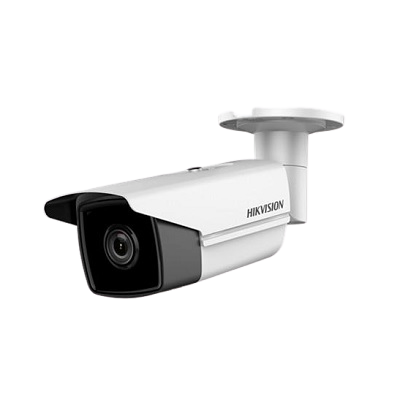

DS-2CD4A26FWD-IZS-P 2MP ANPR Ultra-Low Light Bullet Camera


The ANPR series ultra-low light smart cameras are able to
capture vehicle and recognize vehicle number plate of various
countries and regions in dim light environment.
DS-2CD4A26FWD-(IZ)(IZS)(IZHS)(LZS)/P offers high resolution,
120dB WDR, Auto-iris, PoE, Defog, EIS, 3D DNR, etc., to meet a
wide variety of applications.

 1/1.8″ Progressive Scan CMOS
 1920 × 1080 @ 60fps
 Ultra-low light
 Auto-iris
 120dB WDR
 IP67
 IR and white light, optional
 Capture rate > 99% (certain countries and
 Recognition rate > 98% (certain countries
and regions)



Function Description
Vehicle Detection and LPR
 Support countries and regions of Mid-East, Africa, Asia-Pacific, America, Europe, Russian-speaking Countries.
 In European and Russian-speaking regions, capture rate exceeds 99%, recognition rate exceeds 98%.
 Smart recording: support edge recording and dual-VCA
 Smart encoding: support low bit rate, low latency, ROI enhance encoding
 1920 × 1080 @60fps
 Support auto iris, DC-drive
 Support rotate mode, suitable for environment as corridor
 Support target cropping, details can be seen with low bandwidth
 Streaming smoothness setting for different requirements of image quality and fluency
 Support H.264+/H.264/MPEG4/MJPEG video compression, multi-level video quality configuration; support
Baseline Profile/Main Profile/High Profile H.264 encoding complexity.
 Multiple OSD color: Black & white self-adaptive; Custom
 120dB WDR is supportable for backlight environment
 Support defog, BLC, EIS, 3D DNR
 Support ONVIF (profile S/profile G), ISAPI protocol
 Support three streams, and support 20 channels live view at the same time
 Lightning protection, surge protection, voltage transient protection, anti-static protection
 Support standard 128 G microSD/SDHC/SDXC card storage
 Support 10M/100M Ethernet port
 Support Audio I/O (-S)
 Support Alarm I/O (-S)
 Support CVBS analog output (4CIF resolution)
 Support three-level user authentication management, user and password authorization, and IP address filtering
 Support security certificate as HTTPS
 Lock user IP after certain times failed login attempts
Image Sensor 1/1.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s, supports slow shutter
2.8 mm to 12 mm, F1.4, horizontal field of view: 92°to 32°
8 mm to 32 mm, F1.6, horizontal field of view: 42°to 13.5°
Auto-iris DC drive
Day & Night IR cut filter with auto switch
Digital Noise Reduction 3D DNR
WDR 120dB
Compression Standard
Video Compression
Main stream: H.264/MPEG4
Sub stream: H.264/MPEG4/MJPEG
Third stream: H.264/MPEG4/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2
Audio Bit Rate (-S) 64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32-160Kbps (MP2L2)
Max. Resolution 1920 × 1080
Main Stream
Max. Frame Rate
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream
Max. Frame Rate
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement BLC /3D DNR/Defog/EIS
Image Setting Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
Region of Interest Support 4 fixed region for each stream, and dynamic tracking
Target Cropping Support
Day/Night Switch Auto/Schedule/Triggered by Alarm In (-S)
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Road Traffic and Vehicle Detection
European and Russian-Speaking Regions:
Capture Rate > 99%
Recognition Rate > 98%
Vehicle Speed Support vehicle speed under 120 km/h (74.6 mi/h)
Line number Up to 4 lines supported. Recommended to set 1 or 2 lines for best performance
Direction Support capture and recognition of vehicles both approaching and leaving
Whitelist and Blacklist Up to 2048
Countries and Regions
Turkey, United Arab Emirates, Qatar, Iran, Iraq, Morocco, Egypt, Jordan, Kuwait, Saudi Arabia,
Tunisia, Palestine, Pakistan
South Africa, Kenya, Nigeria, Tanzania, Mauritius
Australia, Mauritius, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam,
the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia
United States of America, Colombia, Brazil, Ecuador, Peru, Mexico
Slovakia, Italy, Spain, France, Germany, Poland, France, Czech Republic, Netherlands, Denmark,
Luxembourg, Greece, Albania, Bosnia and Herzegovina, Ireland, Malta, Sweden, Switzerland,
Portugal, Macedonia, Croatia, Finland, United Kingdom, Romania, Serbia, Bulgaria, Norway, Israel,
Hungary, Austria, Vatican City State, Cyprus, Iceland, Slovenia, Turkey, Montenegro
Russian-Speaking Countries:
Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Armenia, Russian Federation,
Ukraine, Moldova, Belarus, Turkmenistan, Uzbekistan
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Road traffic, motion detection, video tampering alarm, network disconnected, IP address conflict,
illegal login, HDD full, HDD error
IGMP, 802.1X, QoS, IPv6
General Function One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask,
watermark, IP address filter, mirror
Standard ONVIF (profile S, profile G), ISAPI
Communication Interface 1 RJ45 10M/100M Ethernet port
Audio (-S) With –S model: 1 audio input(line in/mic in), 1 audio output
Alarm (-S) With –S model: 1 input, 1 output
Video Output 1Vp-p composite output (75 Ω/BNC)
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 G
Reset Button Yes
Audio (-S)
Environment Noise Filtering Support
Audio I/O Support
Audio Sampling Rate 16kHz/32kHz/44.1kHz/48 kHz
Operating Conditions -IZS/P, -IZ/P, -LZS/P: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
-IZHS/P: -40 °C to +60 °C (-40 °F to +140°F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, terminal block
PoE (802.3at, class 4)
Power Consumption
and Current
12 VDC, max. 13.3 W, 1.2 A; PoE, max. 17.6 W, 0.3 A to 0.5 A
12 VDC, max. 14.5 W, 1.3 A; PoE, max. 19.2 W, 0.3 A to 0.5 A
12 VDC, max. 18.1 W, 1.6 A; PoE, max. 24 W, 0.4 A to 0.6 A
IR -IZ/P, -IZS/P, -IZHS/P: 850 nm IR wavelength, up to 50 meters for 2.8 to 12 mm lens, up to 100 m for
8 to 32 mm lens
White Light -LZS/P: up to 50 meters for 2.8 to 12 mm lens, up to 100 m for 8 to 32 mm lens
Heater -IZHS: support
4-Ø 5.5 (0.22″ )
Protection IP67
Dimensions 348.38 × 114.18 × 111.73 mm (13.72″ × 4.5″ × 4.4″)
Weight Approx. 2075 g (4.57 lb.)
