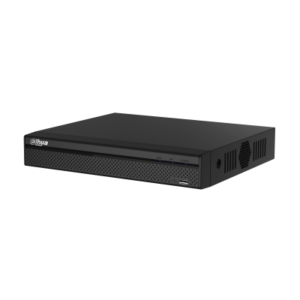

DH-XVR1B16

DH-XVR1B16

·DH-XVR1B16  H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 24 channels IP camera inputs, each channel up to 6MP;
Max 96Mbps incoming bandwidth
· Long transmission distance over coax cable
· Supports 1 SATA HDD, up to 6TB
· Smart Search and Intelligent Video System

DH-XVR1B16

• Embedded Processor
• Dual-stream Recording
• Smart H.264+ Video Compression
• Auto-detect and auto-configuration of HDCVI/AHD/CVBS/TVI/IP cameras
• Maximum 16+8 IP Camera Channels, up to 5 MP per Channel
• Maximum 96 Mbps Incoming Bandwidth
• Smart Search and Intelligent Video System

• System

  DH-XVR1B16 Main Processor

  Embedded Processor

  Operating System

  Embedded LINUX

  Video and Audio

  DH-XVR1B16 Analog Camera Input

  16 Channel, BNC

  DH-XVR1B16 HDCVI Camera

  1080P@25/30fps, 720P@25/30fps

  AHD Camera

  1080P@25/30, 720P@25/30fps

  DH-XVR1B16 TVI Camera

  1080P@25/30, 720P@25/30fps

  CVBS Camera

  PAL/NTSC

  IP Camera Input

  16+2, each channel up to 6MP

  Audio In/Out

  1/1, RCA

  Two-way Talk

  Reuse audio in/out, RCA

  DH-XVR1B16 Recording

  Video Compression

  H.265+/H.265/H.264+/H.264

  Resolution

  1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF

  DH-XVR1B16 Record Rate

  Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) Sub stream: CIF/QCIF (1~7fps)

  Video Bit Rate

  32Kbps ~ 4096Kbps Per Channel

  Record Mode

  Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

  DH-XVR1B16 Record Interval

  1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

  Audio Compression

  G.711A, G.711U, PCM

  Audio Sample Rate

  8KHz, 16 bit Per Channel

  Audio Bit Rate

  64Kbps Per Channel

  Display

  IDH-XVR1B16 nterface

  1 HDMI ,1 VGA

  Resolution

  1920×1080, 1280×1024, 1280×720

  Multi-screen Display

  When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16

  OSD

  Camera title, Time, Video loss, Camera lock, Motion detection, Recording

  Network

  Interface

  1 RJ-45 Port (100M)

  Network Function

  HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

  Max. User Access

  128 users

  Smart Phone

  iPhone, iPad, Android

  Interoperability

  ONVIF 16.12, CGI Conformant

  Video Detection and Alarm

  Trigger Events

  Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

  Video Detection

  Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

  Alarm input

  N/A

  Relay Output

  N/A

  Playback and Backup

  Playback

  1/4/9/16

  Search Mode

  Time /Date, Alarm, MD and Exact Search (accurate to second)

  Playback Function

  Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

  Backup Mode

  USB Device/Network

  Storage

  Internal HDD

  1 SATA Port, up to 6TB capacity

  eSATA

  N/A

  Auxiliary Interface

  USB

  2 USB 2.0

  RS232

  N/A

  RS485

  N/A

  Electrical

  Power Supply

  DC12V/2A

  Power Consumption (Without HDD)

  <10W

  Construction

  Dimensions

  Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″)

  Net Weight (without HDD)

  0.80kg ( 1.76lb) (without HDD)

  Gross Weight

  1.5kg (3.3lb)

  Installation

  Desktop installation

  Environmental

  Operating Conditions

  -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH

  Storage Conditions

  -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

  Third-party Support

  Third-party Support

  Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
