DH-IPC-HFW1230SP-0360B-S4

DH-IPC-HFW1230SP-0360B-S4

DH-IPC-HFW1230SP-0360B-S4 Standard:	TCP/IP
Sensor:	1/2.9 ” Progressive Scan CMOS
Matrix size:	2.1 Mpx
Scanning system:	Progressive
DH-IPC-HFW1230SP-0360B-S4 Resolution:	1920 x 1080  – 1080p 1280 x 1024  – 1.4 Mpx 1280 x 960  – 1.3 Mpx 1280 x 720  – 720p
DH-IPC-HFW1230SP-0360B-S4 Lens:	3.6 mm
View angle:	83 ° (manufacturer data) 80 ° (our tests result)
DH-IPC-HFW1230SP-0360B-S4 Range of IR illumination:	30 m
S/N ratio:	> 50 dB
RS-485 interface:
Memory card slot:
Image compression method:	H.265 / H.265+ / H.264 / H.264+ / MJPEG
Alarm inputs / outputs:
Audio:
Bitrate:	32 kb/s … 10240 kb/s @ H.264 12 kb/s … 6400 kb/s @ H.265
DH-IPC-HFW1230SP-0360B-S4 Main stream frame rate:	25 fps @ 1080p
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, IPv4/IPv6, TCP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPnP, NTP, QoS, Bonjour, IEEE 802.1x, Multicast , ICMP, IGMP, SNMP
WEB Server:	Built-in
Max. number of on-line users:	20
ONVIF:	16.12
Mobile phones support:
DH-IPC-HFW1230SP-0360B-S4 Default admin user / password:	admin / admin
Default IP address:	192.168.1.108
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
DH-IPC-HFW1230SP-0360B-S4 RTSP URL:	rtsp://admin:hasł[email protected]:554/cam /realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:hasł[email protected]:554 /cam/realmonitor?channel=1&subtype=1 – Sub stream
Main features:	D-WDR – Wide Dynamic Range 3D-DNR – Digital Noise Reduction ROI – improve the quality of selected parts of image BLC/HLC – Back Light / High Light Compensation Possibility to change the resolution, quality and bit rate Motion Detection Privacy zones Configurable Privacy Zones Mirror – Mirror image
DH-IPC-HFW1230SP-0360B-S4 Power supply:	PoE (802.3af), 12 V DC / 410 mA
Power consumption:	≤ 5 W
Housing:	Compact – Metal
Color:	White
“Index of Protection”:	IP67
Operation temp:	-30 °C … 60 °C
Weight:	0.40 kg
Dimensions:	Ø 70  x 165 mm
Supported languages:	English, Polish
Manufacturer / Brand:	DAHUA
Guarantee:	3 years

DH-IPC-HFW1230SP-0360B-S4

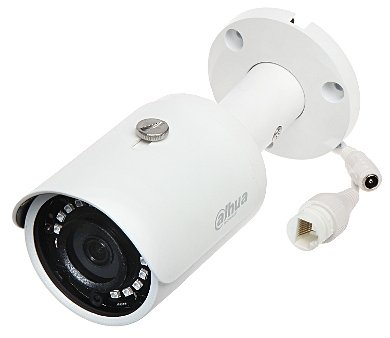

System Overview
The IR Megapixel Fixed camera delivers 2MP resolution with a motorized
2.8mm/3.6mm fixed lens.The camera’s elegant blend of aesthetics
combined with a range of easy mounting solutions provides an excellent
choice for a variety of small to mid-size applications at an affordable
price.

DH-IPC-HFW1230SP-0360B-S4 Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video
compression (H.265 & H.264) that uses a scene-adaptive encoding
strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference
structure and intelligent noise reduction to deliver high-quality video
without straining the network. Smart Codec technology reduces bit rate
and storage requirements by up to 70% when compared to the standard
video compression.

Intelligent Video Analysis (IVS)
Dahua camera is equipped with a built-in intelligent analytic algorithm
based on video, which can realize intelligent functions like Tripwire
and Intrusion, to quickly and accurately respond to monitoring events
in specific area, It can enhance monitoring efficiency. In addition, the
camera supports intelligent tamper detection, which is to generate
warning message via detecting dramatic scene change and to guarantee
effective video surveillance.

DH-IPC-HFW1230SP-0360B-S4 Smart IR Technology
With IR illumination, detailed images can be captured in low light or
total darkness. The camera’s Smart IR technology adjusts the intensity of
camera’s infrared LEDs to compensate the distance of an object. Smart
IR technology prevents IR LEDs from whitening out images as they come
closer to the camera. The camera’s integrated infrared illumination
provides high performance in extreme low-light environments up to 30m
(98ft).

Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the
most unstable conditions for outdoor applications. Its 6KV lightning
rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion
tests (IP67) , the camera is the choice for installation in even the most
unforgiving environments.

Environmental
Dahua cameras operate in extreme temperature environments, rated for
use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95%
humidity.
Image Flip
Capturing unnecessary data such as surrounding hallway walls can
increase storage requirements without any added value. The image flip
feature allows the camera’s image to be rotated in 90° increments for
better video optimization.

Interoperability
The camera conforms to the ONVIF (Open Network Video Interface
Forum) specifications, ensuring interoperability between network video
products regardless of manufacturer.

Technical Specification

Camera
Image Sensor 1/2.7” 2Megapixel progresive CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 256MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in

Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:104°/92°,V:55°/50°
Focus Control Fixed
Close Focus Distance 0.6m(0.9m)
DORI Distance
Lens Detect Observe Recognize Identify
2.8 mm 40(131ft) 16(52ft) 8(26ft) 4(13ft)
3.6 mm 53(174ft) 21(69ft) 11(36ft) 5(16ft)
PTZ

Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
Event Trigger
Motion detection, Video tampering, Scene changing,
Network disconnection, IP address conflict, Illegal
access, Storage anomaly
IVS Tripwire, Intrusion

Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution

1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W

BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)

Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol
HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

TLS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari

Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A

RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
DH-IPC-HFW1230SP-0360B-S4 Power Consumption <5.5W
