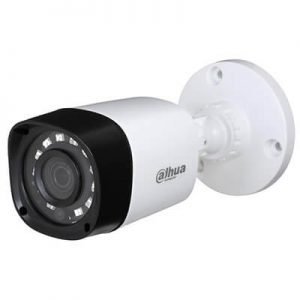

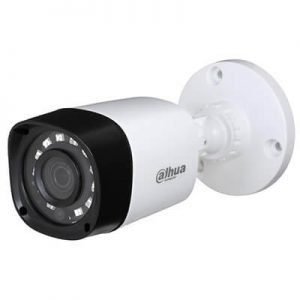

DH-HAC-HFW1200RP HDCVI Bullet
DH-HAC-HFW1200RP HDCVI Bullet
DH-HAC-HFW1200RP HDCVI Bullet
DH-HAC-HFW1200RP HDCVI Bullet

DH-HAC-HFW1200RP HDCVI Bullet

Add to wishlist
Compare

DH-HAC-HFW1200RP HDCVI Bullet

  • 1/2.7″, 2 Megapixel CMOS.25/30 fps @ 1080p
  • 2 years national, All india Warranty
  • Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
  • Max. IR LEDs length 20 m, Smart IR
  • Supported DVR: Dahua xvr4108 or xvr4116 or xvr4104

₦20,500.00

Compare

DH-HAC-HFW1200RP HDCVI Bullet

The parameters and datasheets below can only be applied to 1200-S5 series

> Max 30fps@1080P

> HD and SD output switchable

> 3.6mm fixed lens (2.8mm, 6mm optional)

> Max. IR length 20m, Smart IR

IP67, DC12V

DH-HAC-HFW1200RP HDCVI Bullet

Camera
DH-HAC-HFW1200RP HDCVI Bullet Image Sensor 1/2.7 inch CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
DH-HAC-HFW1200RP HDCVI Bullet Minimum Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Fill Light Working Distance 20 m (65.6 ft)
IR On/Off Control Auto; manual
IR LED Number 12
DH-HAC-HFW1200RP HDCVI Bullet Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
DH-HAC-HFW1200RP HDCVI Bullet Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.9
Field of View 2.8 mm: 119° x 101° x 54°

(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°

(diagonal x horizontal x vertical)
6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)
DH-HAC-HFW1200RP HDCVI Bullet Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 38.6 m (126.6 ft) 15.4 m (50.5 ft) 7.7 m

(25.3 ft)

 3.9 m

(12.8 ft)
3.6 mm 49.7 m (163.1 ft) 19.9 m (65.3 ft) 9.9 m

(32.5 ft)

 5 m

(16.4 ft)
6 mm 82.8 m (271.7 ft) 33.1 m (108.6 ft) 16.6 m (54.5 ft) 8.3 m

(27.2 ft)
Video
Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V ±30% DC
Power Consumption Max 3.1W (12V DC, IR on)
Environment
Operating Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection Grade IP67
Structure
Casing Plastic throughout the whole casing
Camera Dimensions 154.3 mm × 69.8 mm × 69.8 mm ( 6.07″ × 2.75″ × 2.75″ )
Net Weight 0.15 Kg (0.33 lb)
Gross Weight 0.22 Kg (0.49 lb)
