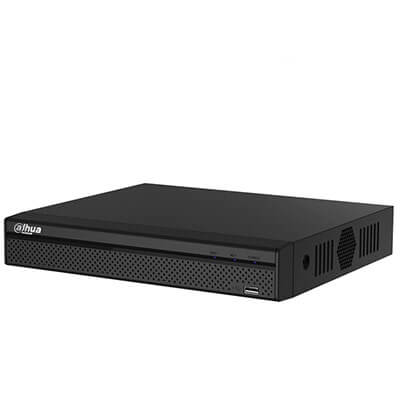

DHI-XVR5108HS-S2 8CH Analog, extra IP channels 1xHDD

Video

• Display resolution – 1920 x 1080
• Video compression formats – H.264
• Playback modes – Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
• Display frame rate30 fps
• Playback resolutions supported1920×1080\n1280×1024\n1280×720\n1024×768

Technical details

• Ethernet LAN – Yes
• Operating system installed – Embedded Linux
• Pause functionYes
• Maximum frame rate30 fps

Ports & interfaces

• Audio input-1
• Audio output-1
• USB 2.0 ports quantity-2
• Ethernet LAN (RJ-45) ports-1
• HDMI ports quantity – 1
• BNC input ports – 8
• RS-485 ports – 1
• VGA (D-Sub) output ports- 1

Hard drive

• Hard drive interface – Serial ATA
• Number of hard drives supported – 1
• Maximum hard drive capacity -8000 GB

Power

• Power consumption (typical)10 W

Weight & dimensions

• Dimensions (WxDxH) – 260 x 236 x 48
• Weight – 750 g

Processor

• Built-in processor – Yes

Certificates

• CertificationFCC: Part 15 Subpart B\nCE: CE-LVD: EN 60950-1/IEC 60950-1\nCE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024\nUL: UL 60950-1

Networking

• Supported network protocols – HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search
• Ethernet interface type – Fast Ethernet

Operational conditions

• Operating relative humidity (H-H) – 0 – 90
• Storage temperature (T-T) – 20 – 70
• Operating temperature (T-T) -10 – 55

Colour

• Colour of product – Black
