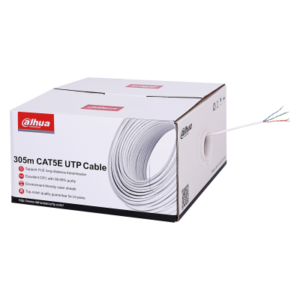

DAHUA PFM920I-5EU-C

Model DH-PFM920I-5EU-C DH-PFM920I-5EU-U
Structure
Conductor Material OFC(oxygen free copper)
Structure 4P*0.5?0.01mm
Insulation Material HDPE
Min. average thickness 0.195mm
Diameter 0.9mm0.05mm
Color(4 Pairs) Orange, white/orange; green, white/green;
blue, white/blue; brown, white/brown
Rip cord Yes
Jacket Material PVC, meet the requirement?of CPR E class PVC, meet the requirement?of UL CM class
Min. average thickness 0.40mm
Diameter 5.0?0.50mm
surface Smooth, full and tight
Color White
General Length 305m(1000.66ft)
N.W. 8.75kg(19.29lb)
Packaging dimension 360mmx360mmx210mm(14.17?x14.17?x8.27?)
Weight (with packaging) 10.0(22.05lb)
Mechanical properties
Insulation Tensile strength ?16MPa
Elongation at break ?300%
Peeling property No damage to insulation or conductor
Jacket Tensile strength Before aging: ?13.5MPa
After aging: ?12.5MPa Before aging: ?13.5MPa
Retention rate of tensile strength after aging: ?85%
Elongation at break Before aging: ?150%
After aging: ?125% Before aging: ?150%
Retention rate of elongation at break after aging: ?50%
Aging condition 100?*24h*7d
Peeling property No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking.
Electrical performance (20?)
Characteristic impedance (1-250MHz) 100?15?
DC resistance ?9.5?/100m
Max. unbalance rate of line pairs? direct current ?5%
Time delay ?45ns/100m
Max. mutual capacitance 5.6nF/100m
Min. insulation resistance 5000M??km
